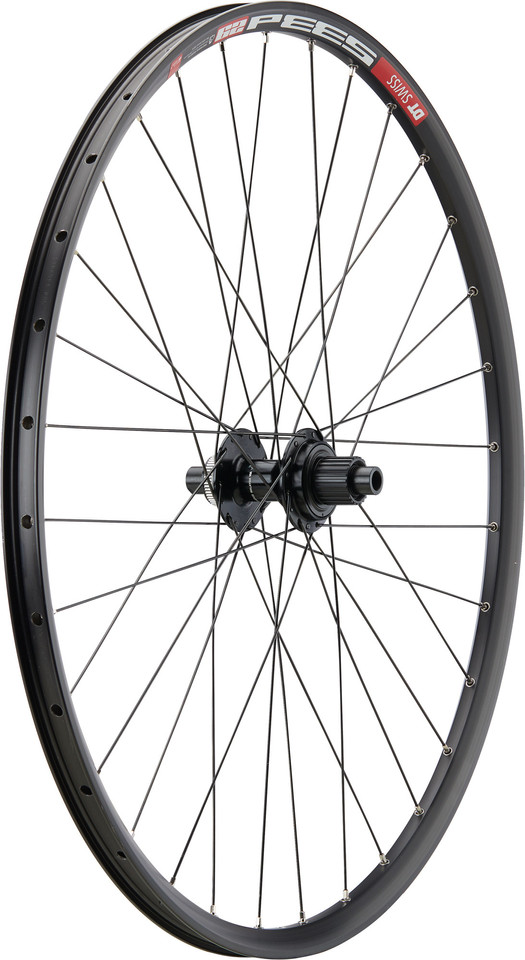

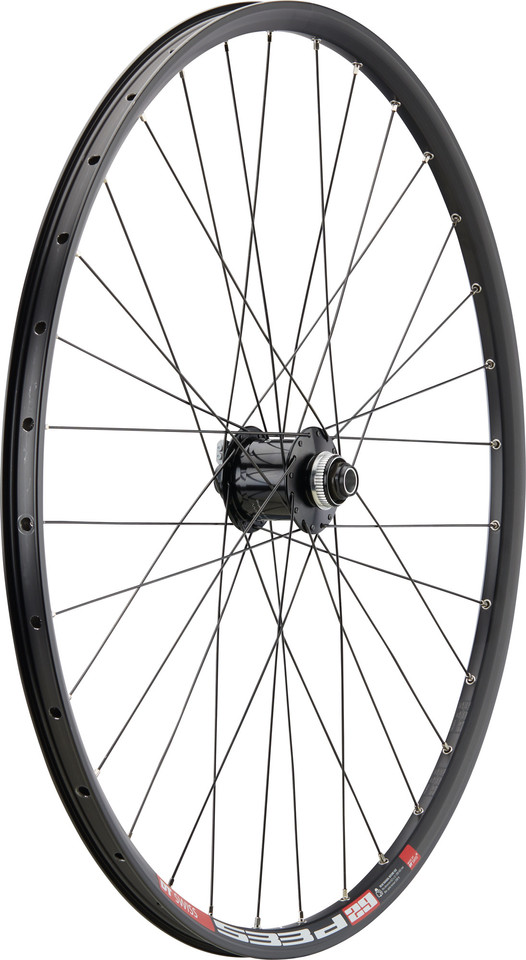

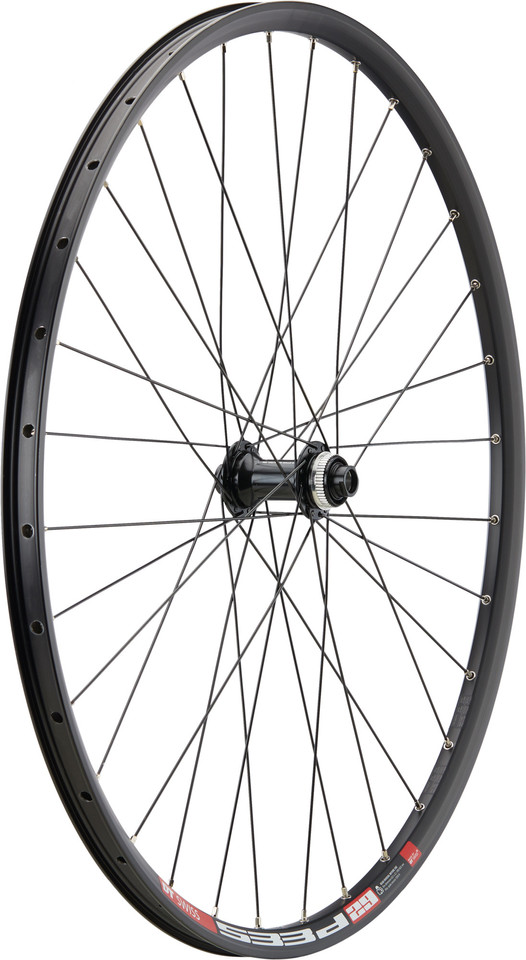

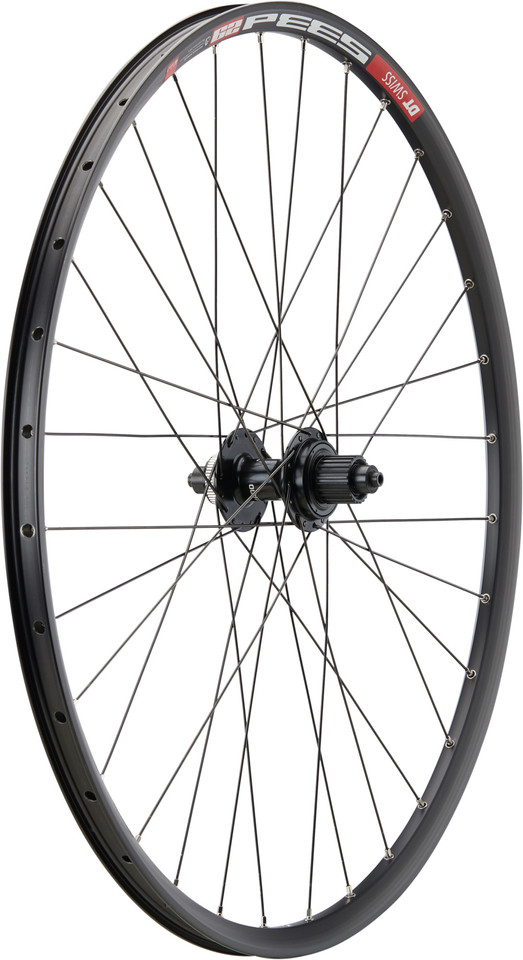

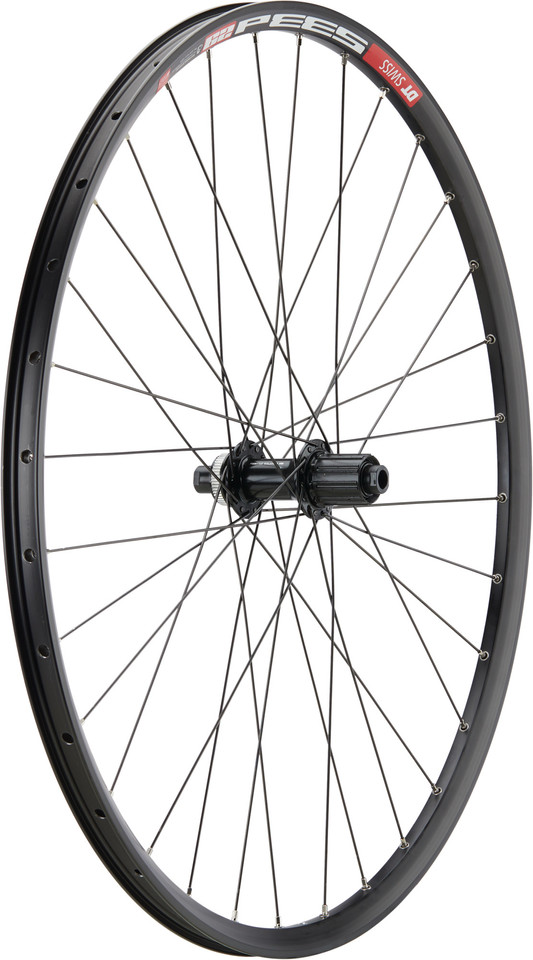

bc basic Urban Deore Center Lock Disc DT Swiss 533D 28" Wheel

The bc basic Urban Wheel with DT 533 Disc Rim and Shimano Deore Hub

The 28" wheel from bc basic for city, touring or trekking use is based on the 533D aluminium rim from DT Swiss. This one is 22 mm wide and stands out for its durability and robust suitability for everyday use. Tubeless mounting is also possible. In the centre is a Shimano Center Lock Disc hub for quick release or thru-axle, which ensures reliable function at Deore level. The front wheel is also available with a Shimano hub dynamo in various over locknut dimensions so that you can fit a lighting system that conforms to road traffic regulations. For the rear wheel, you have the choice between a Micro-Spline freehub for MTB 12-speed cassettes or a conventional Shimano freehub. The whole thing was laced with round DT Factory spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City, City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

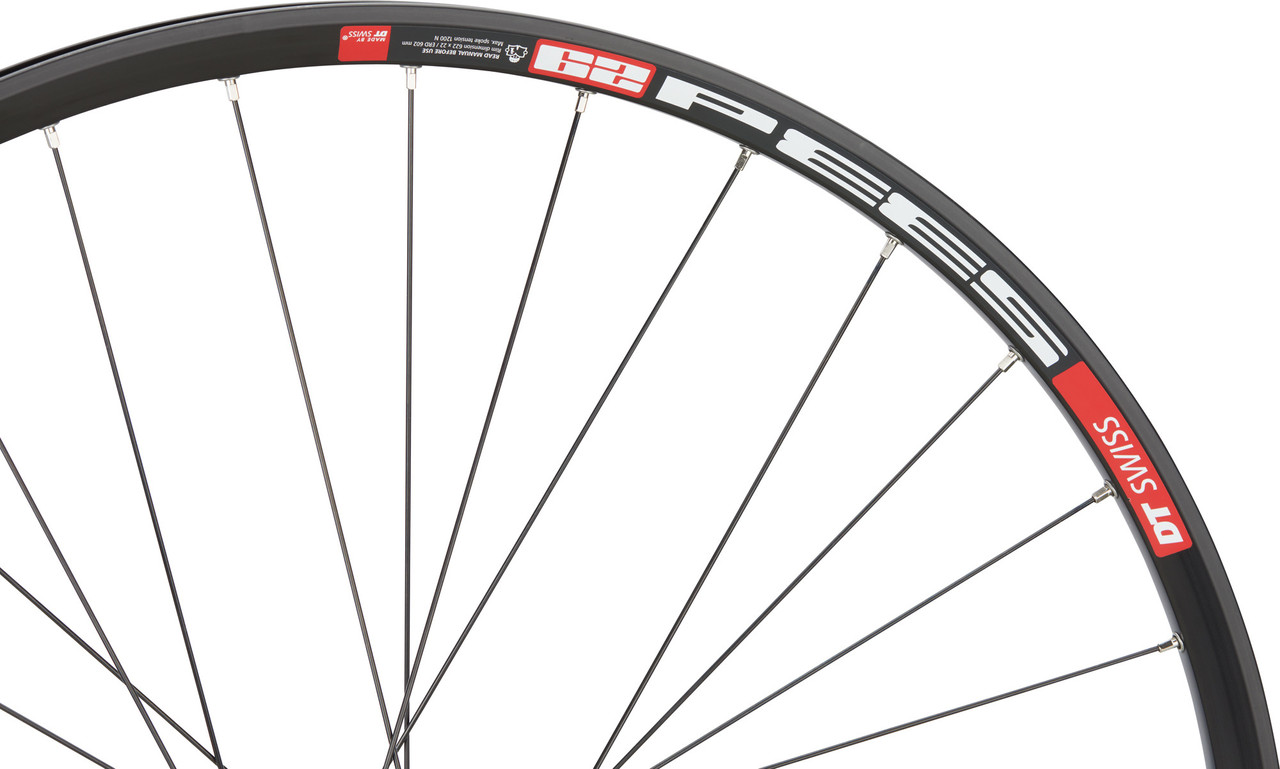

Technical Information - Rim:

Type:

DT Swiss 533D

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

28 mm

Depth:

20.5 mm

ERD:

602 mm (nipple slot)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

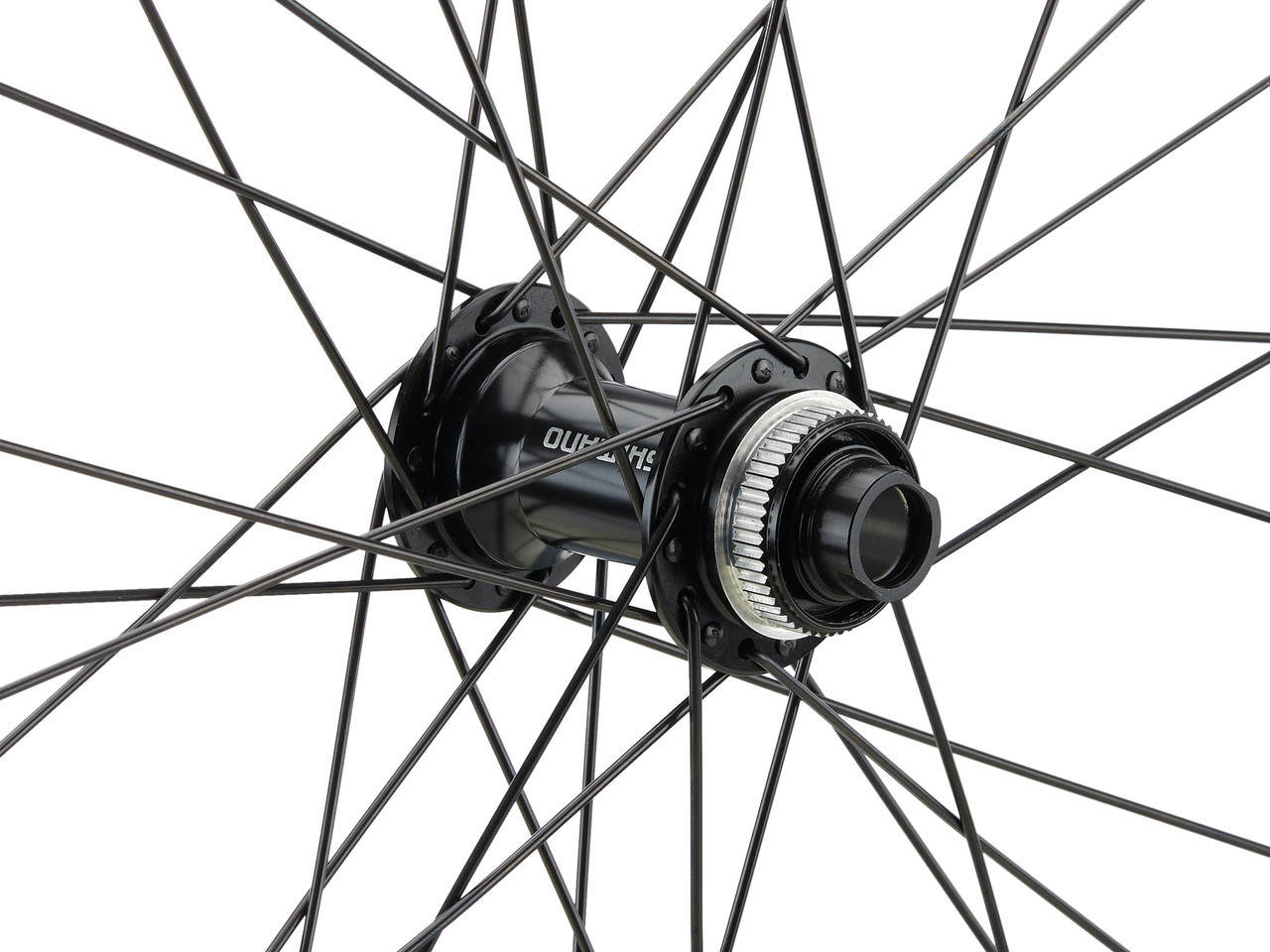

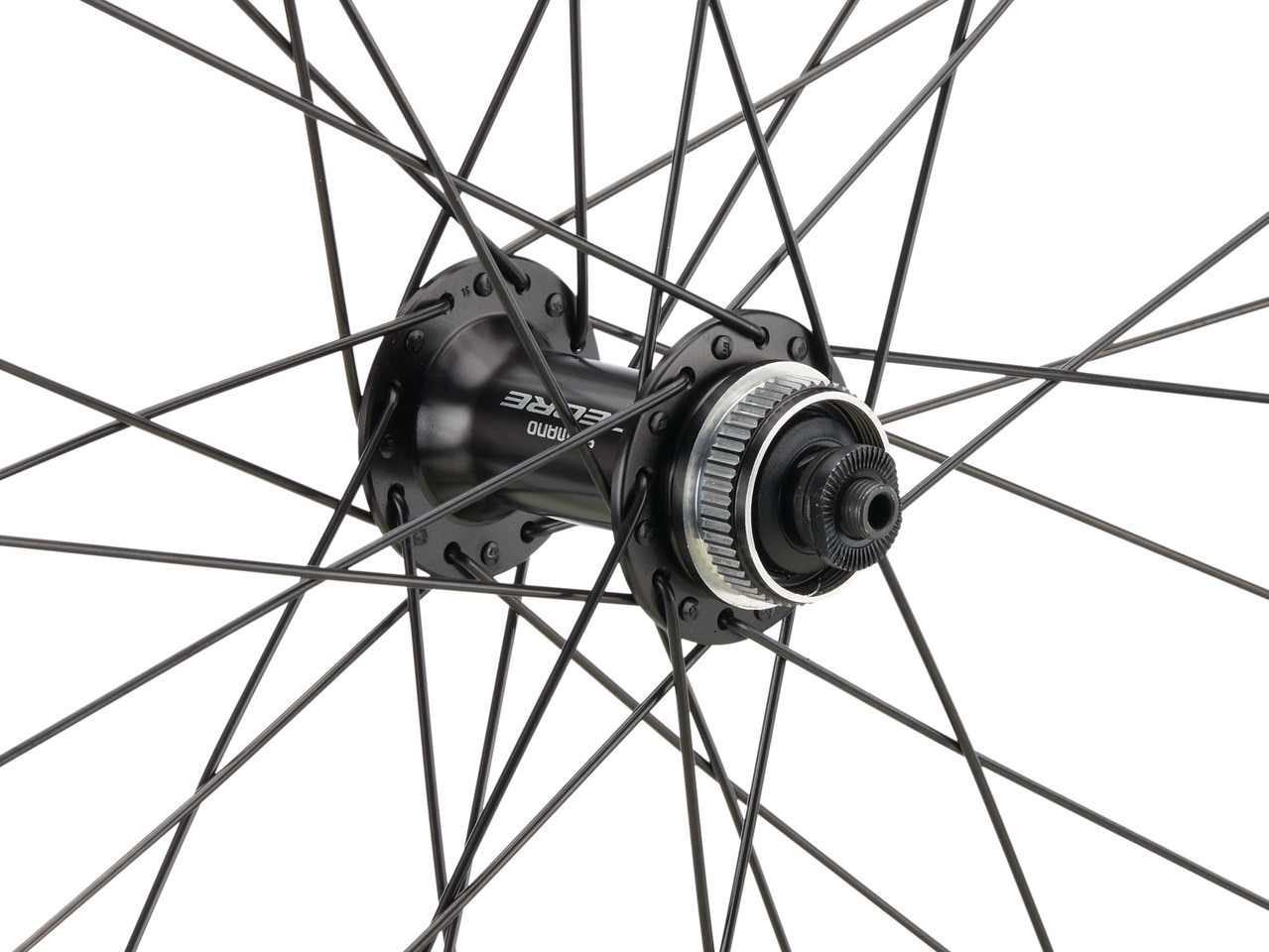

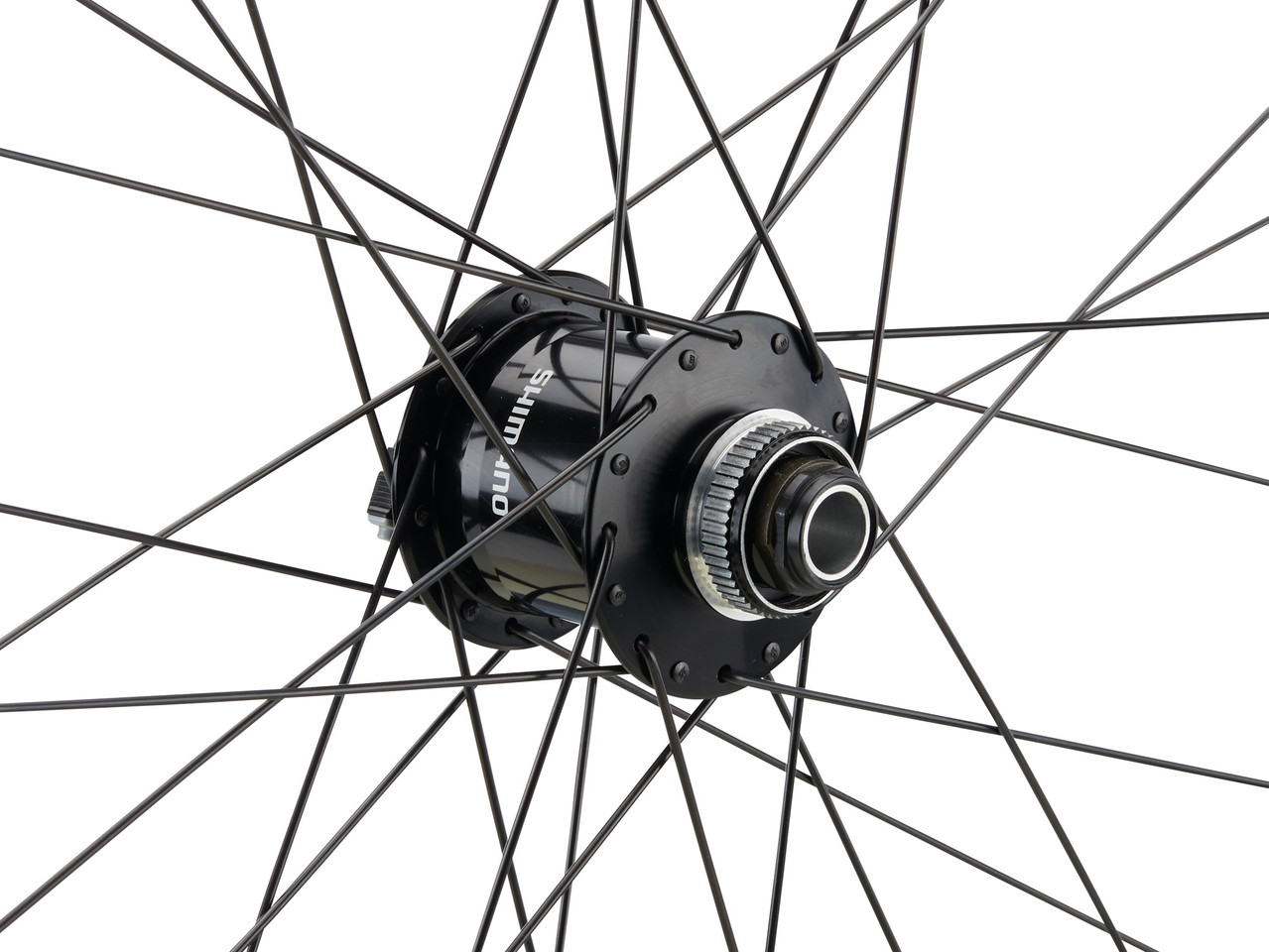

Technical Information - Front Hub:

Type:

Shimano Deore HB-M6000 or HB-MT400

Over Locknut Dimension:

9 x 100 mm quick release or 15 x 100 mm thru-axle

Bearings:

cup & cone bearing (HB-M6000 only)

Body Material:

aluminium

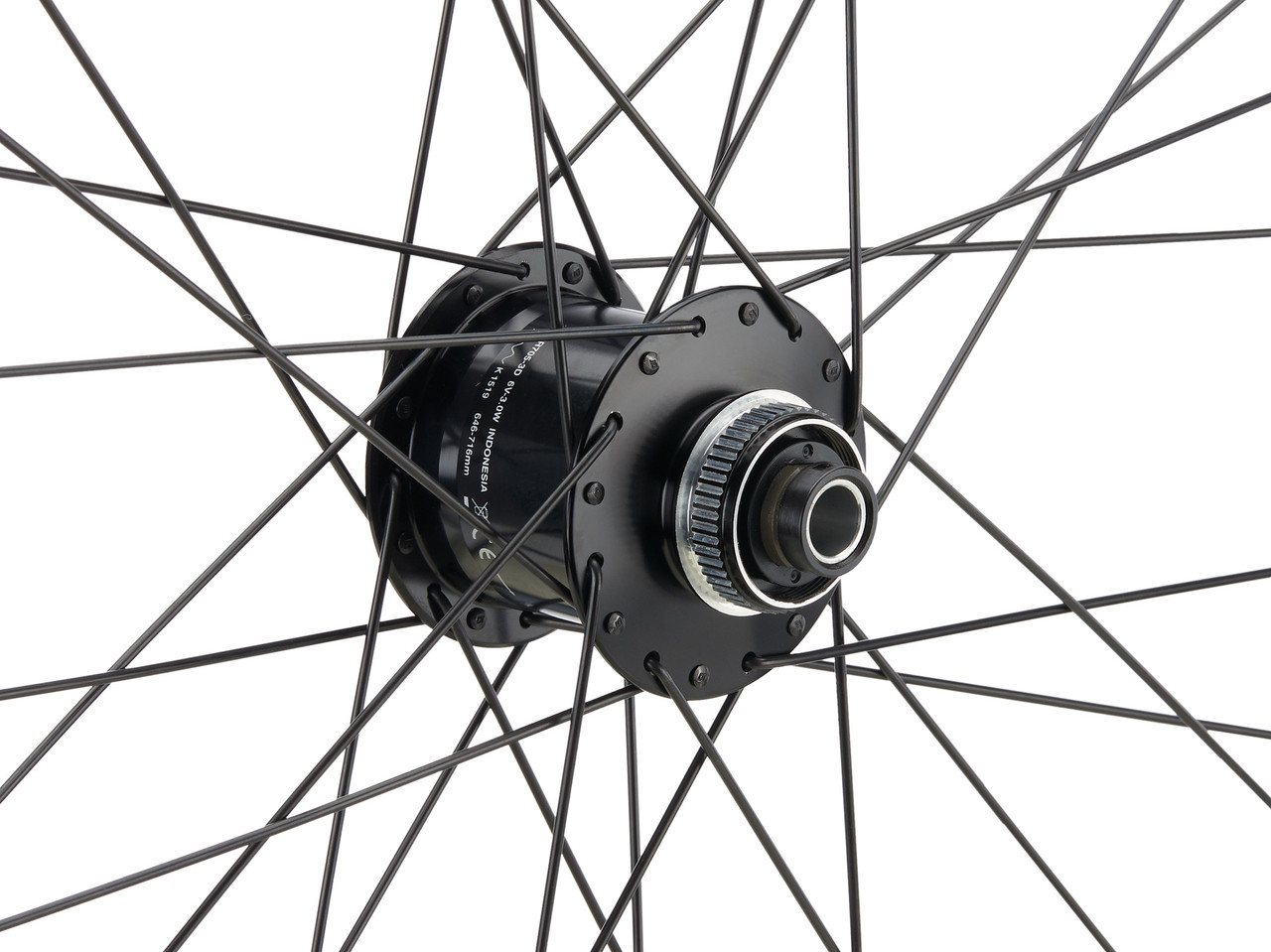

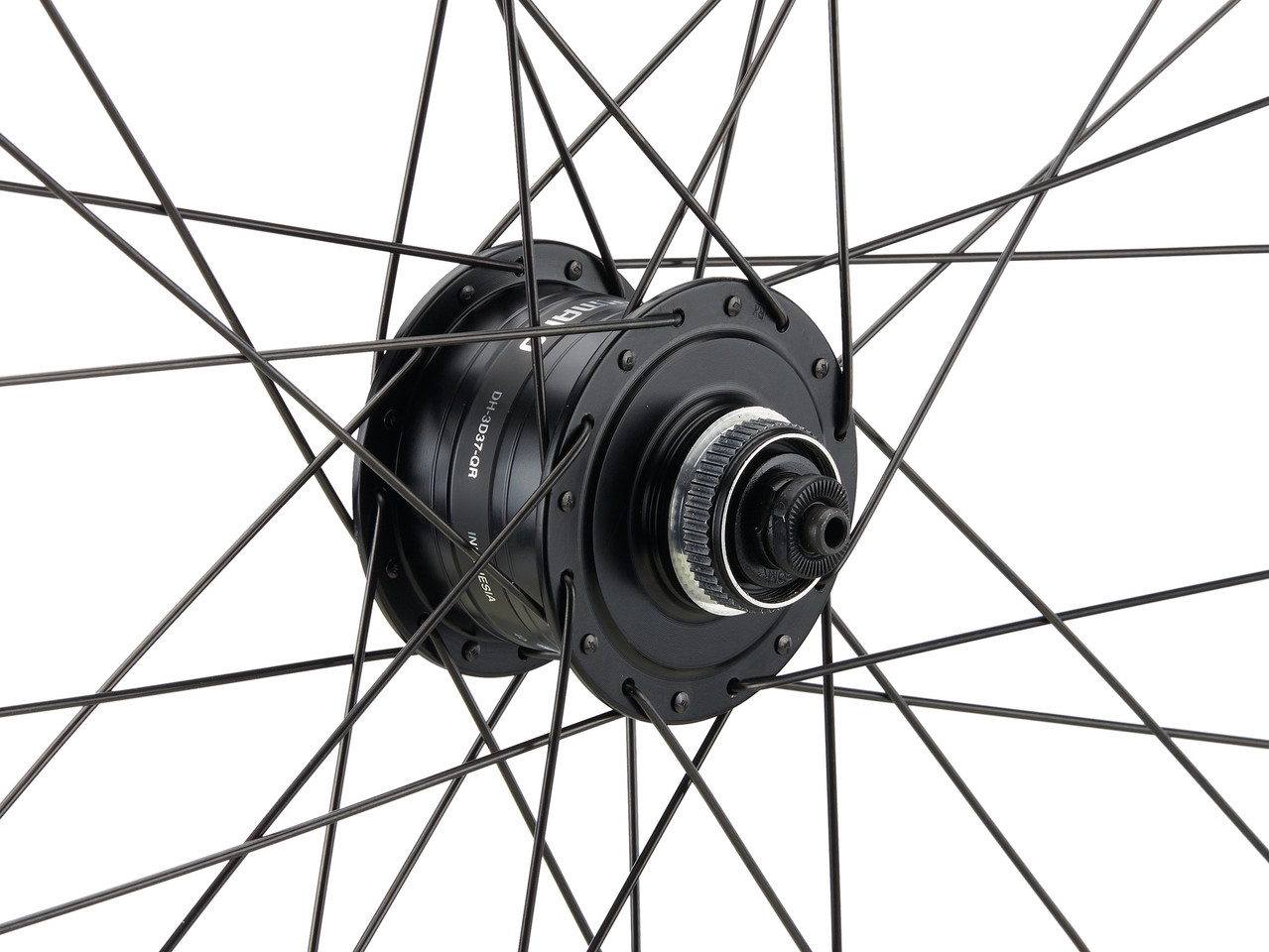

Technical Information - Front Dynamo Hub:

Type:

Shimano DH-3D37-QR or DH-UR708-3D or DH-UR705-3D

Over Locknut Dimension:

9 x 100 mm quick release or 15 x 100 mm thru-axle or 12 x 100 mm thru-axle

Output:

6V/3W (according to StVZO)

Efficiency:

min. 30%

Body Material:

aluminium

Seals:

contact

Wire Connector:

E2-TYP (= meets current European standards for two lights)

Street Use in Germany:

yes

Check Number:

K~~912 (DH-3D37), K~~1684 (DH-UR708), K~~1519 (DH-UR705)

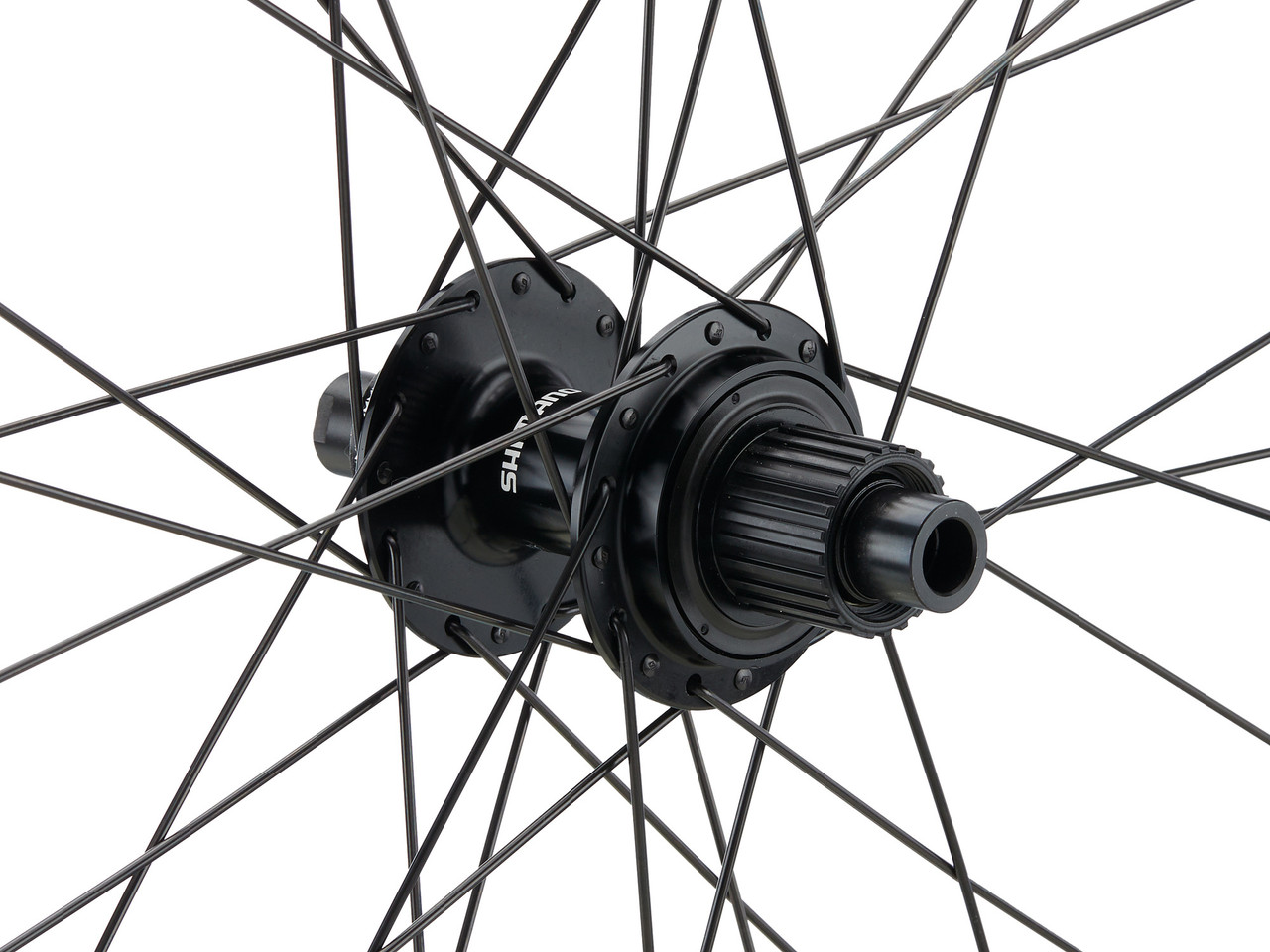

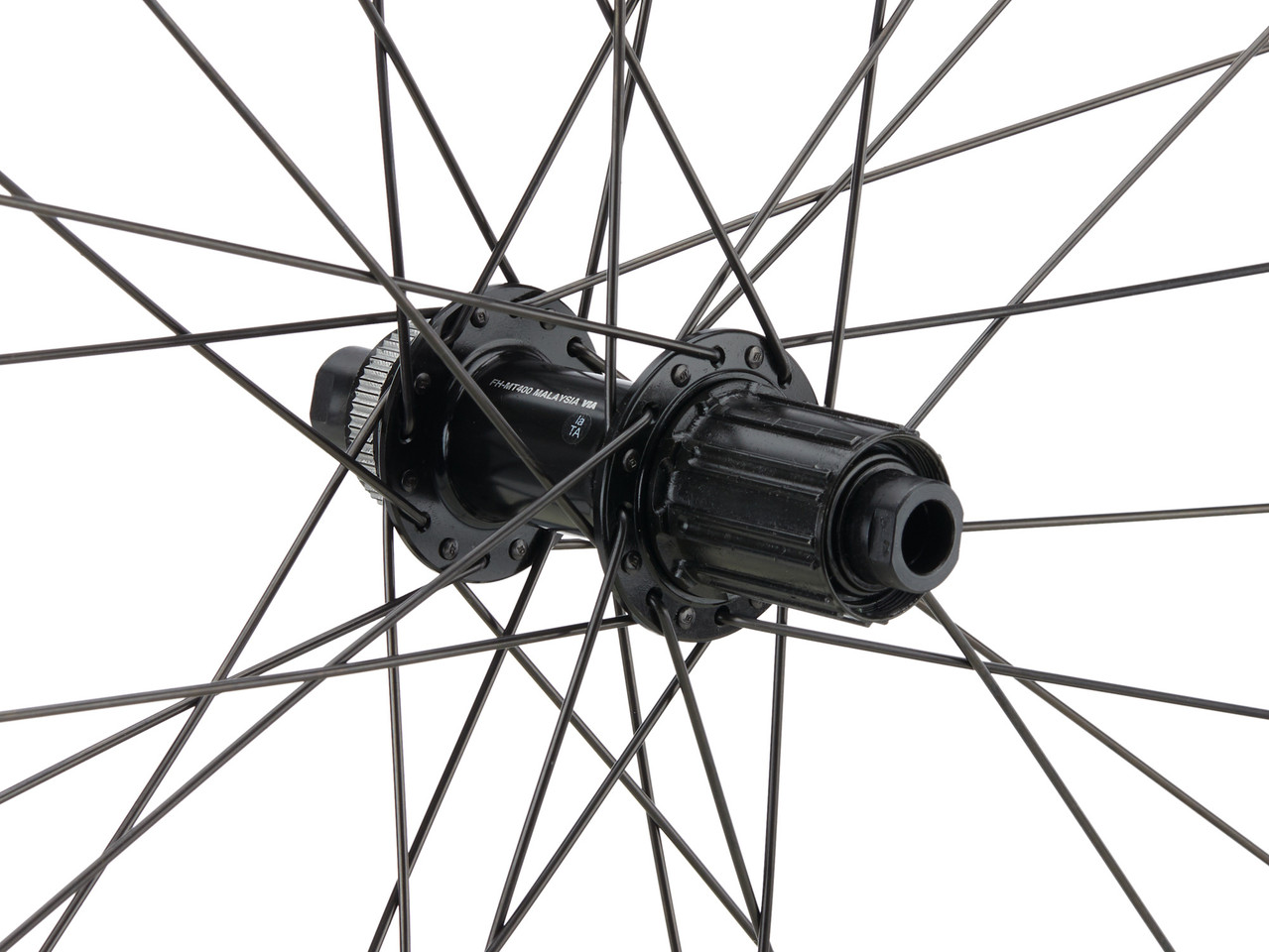

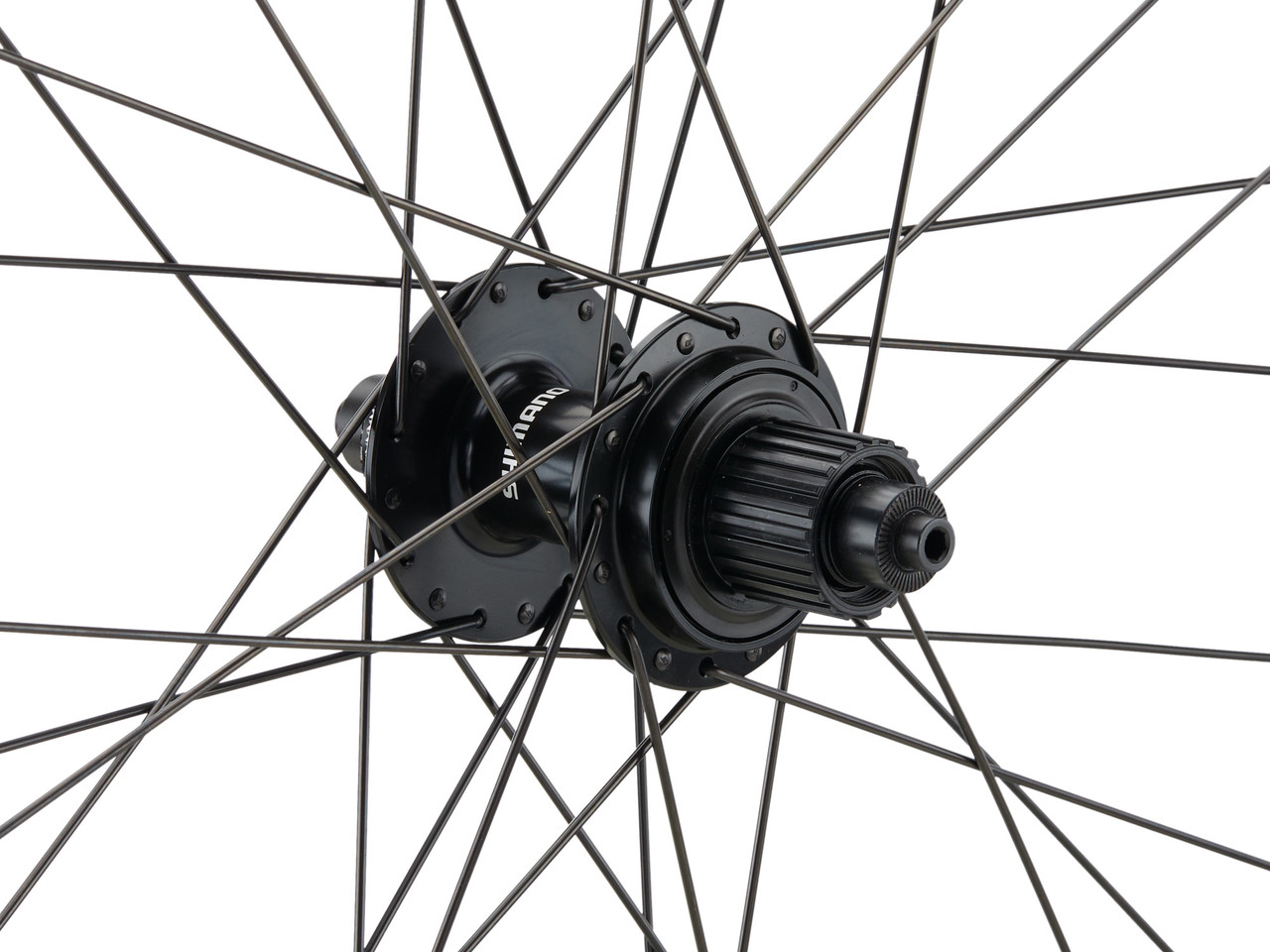

Technical Information - Rear Hub:

Type:

Shimano FH-MT401 or FH-MT400 or FH-MT410

Over Locknut Dimension:

10 x 135 mm quick release or 12 x 142 mm thru-axle

Bearings:

cartridge bearing (FH-MT401/MT410), cup-and-cone bearing (FH-MT400)

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Pawls (Quick Engagement: 36 engagement points / 360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Factory / round (2.0 mm)

Spoke Size:

• front 9 mm: 292 mm
• front 15 mm: 292 mm/294 mm (l/r)
• front 9 mm ND: 288 mm
• front 15 mm ND: 290 mm
• front 12 mm ND: 288 mm/290 mm (l/r)
• rear 142 mm Shimano: 294 mm/292 mm (l/r)
• rear 142 mm Shimano MS: 292 mm/290 mm (l/r)
• rear 135 mm Shimano MS: 290 mm/288 mm (l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

130 kg system weight (rider + bike + gear)

Features:

• durable rim for tough everyday use
• pin joint rim joint
• rim holes silver eyeleted
• lacquered hub shell (HB-M6000: anodised)
• steel axle (HB-MT400: aluminium)

Colour Info:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

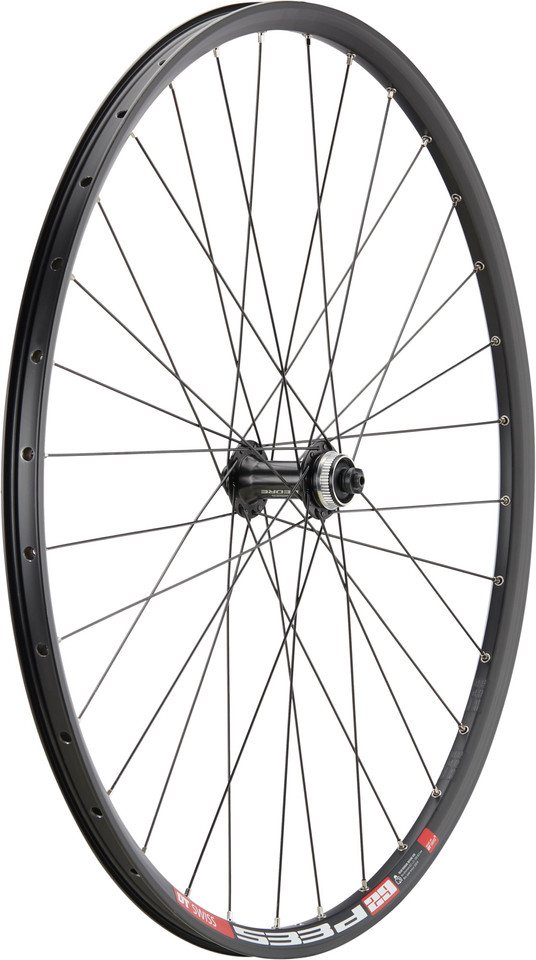

28" front 9x100:

Over Locknut Dimension:

9 x 100 mm quick release (HB-M6000)

Manufacturer Number:

83680-2-10027

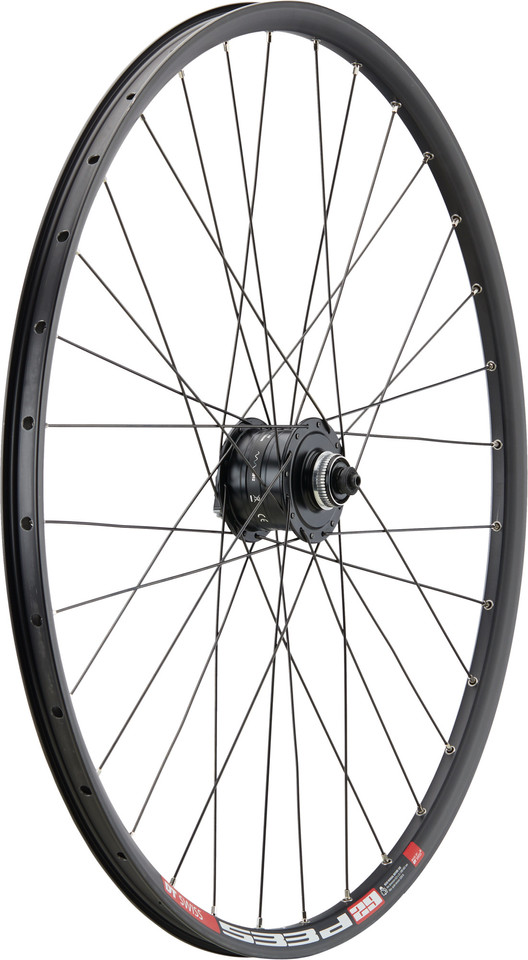

28" front 9x100 dynamo:

Over Locknut Dimension:

9 x 100 mm quick release (DH-3D37-QR)

Manufacturer Number:

83680-2-10471

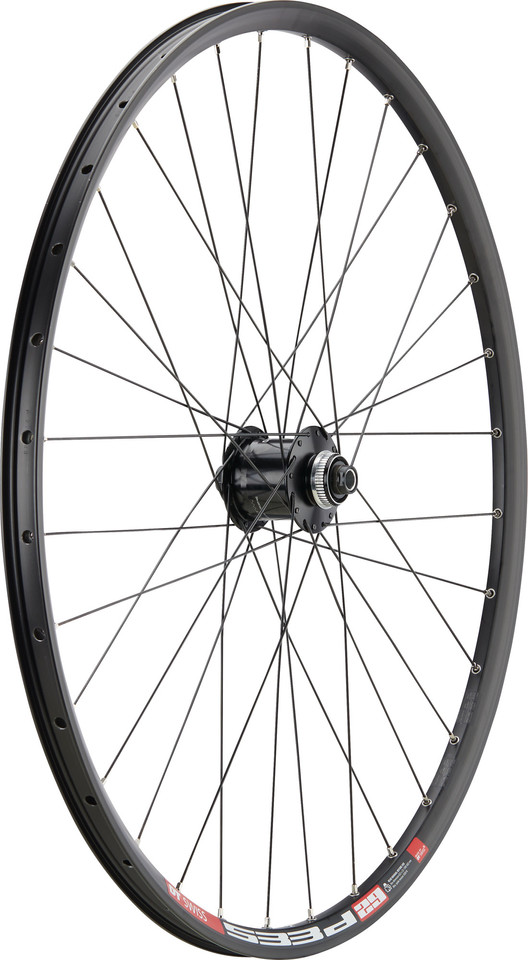

28" front 15x100:

Over Locknut Dimension:

15 x 100 mm thru-axle (HB-MT400)

Manufacturer Number:

83680-2-9381

28" front 15x100 dynamo:

Over Locknut Dimension:

15 x 100 mm thru-axle (DH-UR708-3D)

Manufacturer Number:

83680-2-14061

28" front 12x100 dynamo:

Over Locknut Dimension:

12 x 100 mm thru-axle (DH-UR705-3D)

Manufacturer Number:

83680-2-10856

28" rear 12x142 Shimano:

Over Locknut Dimension:

12 x 142 mm thru-axle (FH-MT400)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83680-2-10430

28" rear 10x135 Shimano Micro Spline:

Over Locknut Dimension:

10 x 135 mm quick release (FH-MT401)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83680-2-14078

28" rear 12x142 Shimano Micro Spline:

Over Locknut Dimension:

12 x 142 mm thru-axle (FH-MT410)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83680-2-14079

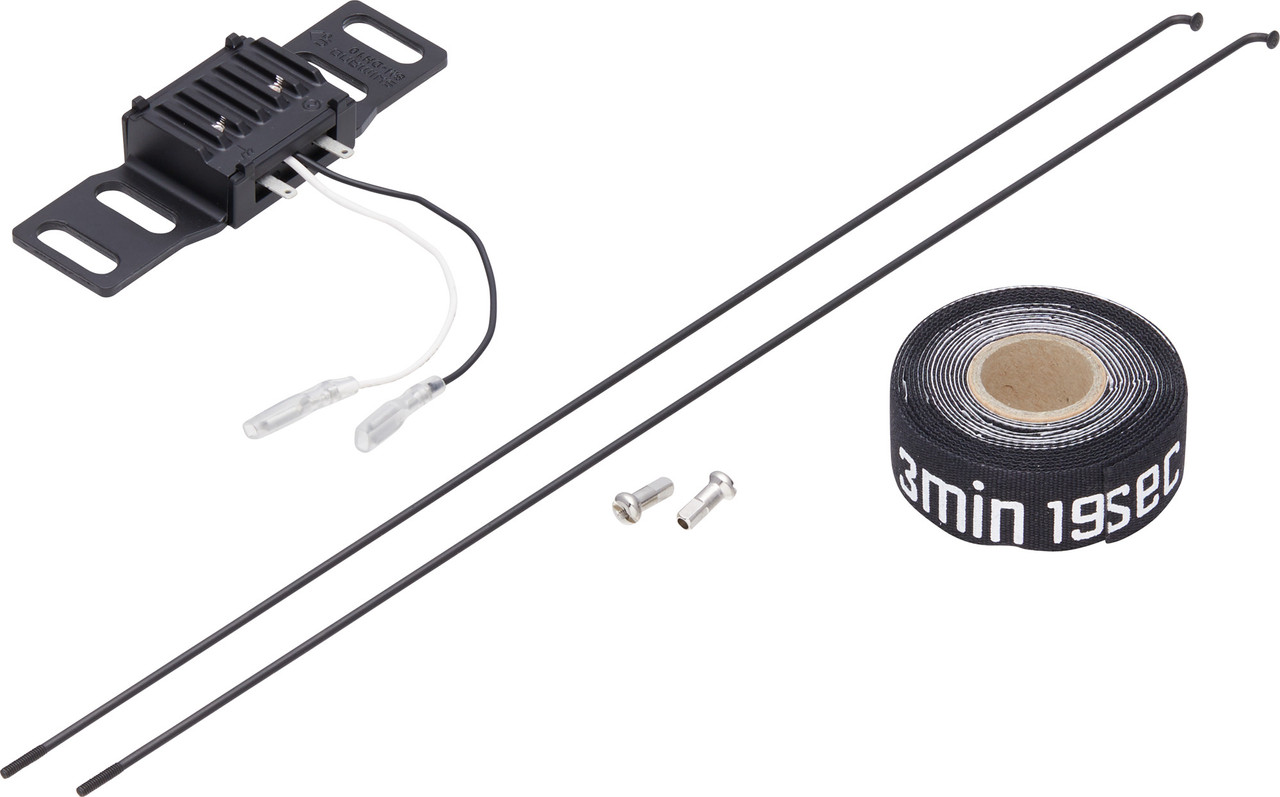

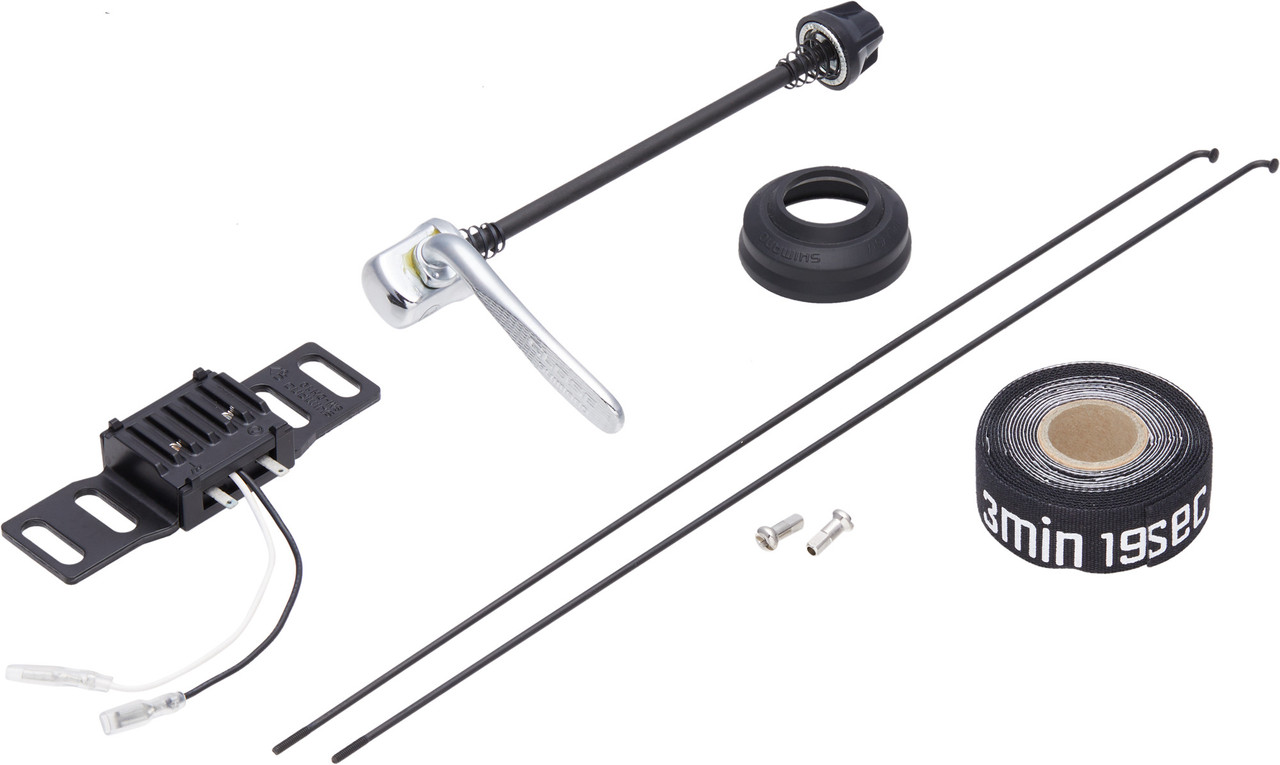

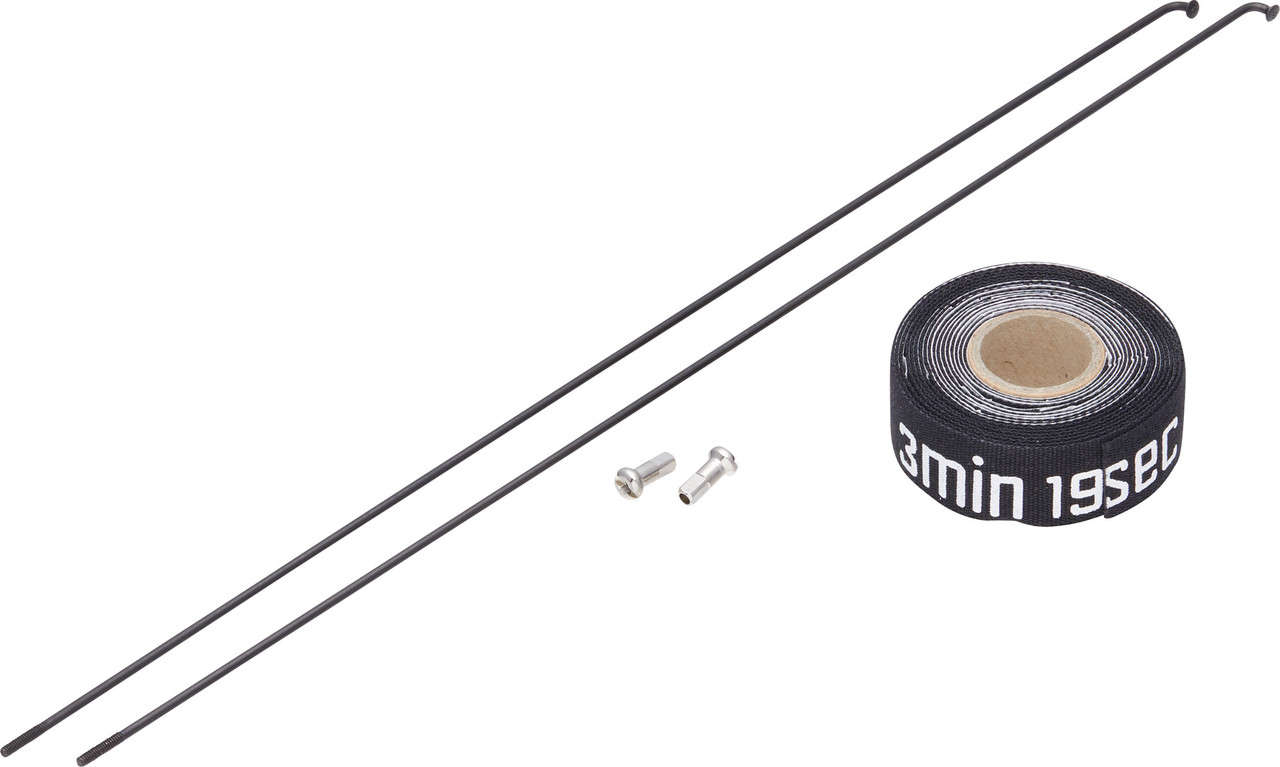

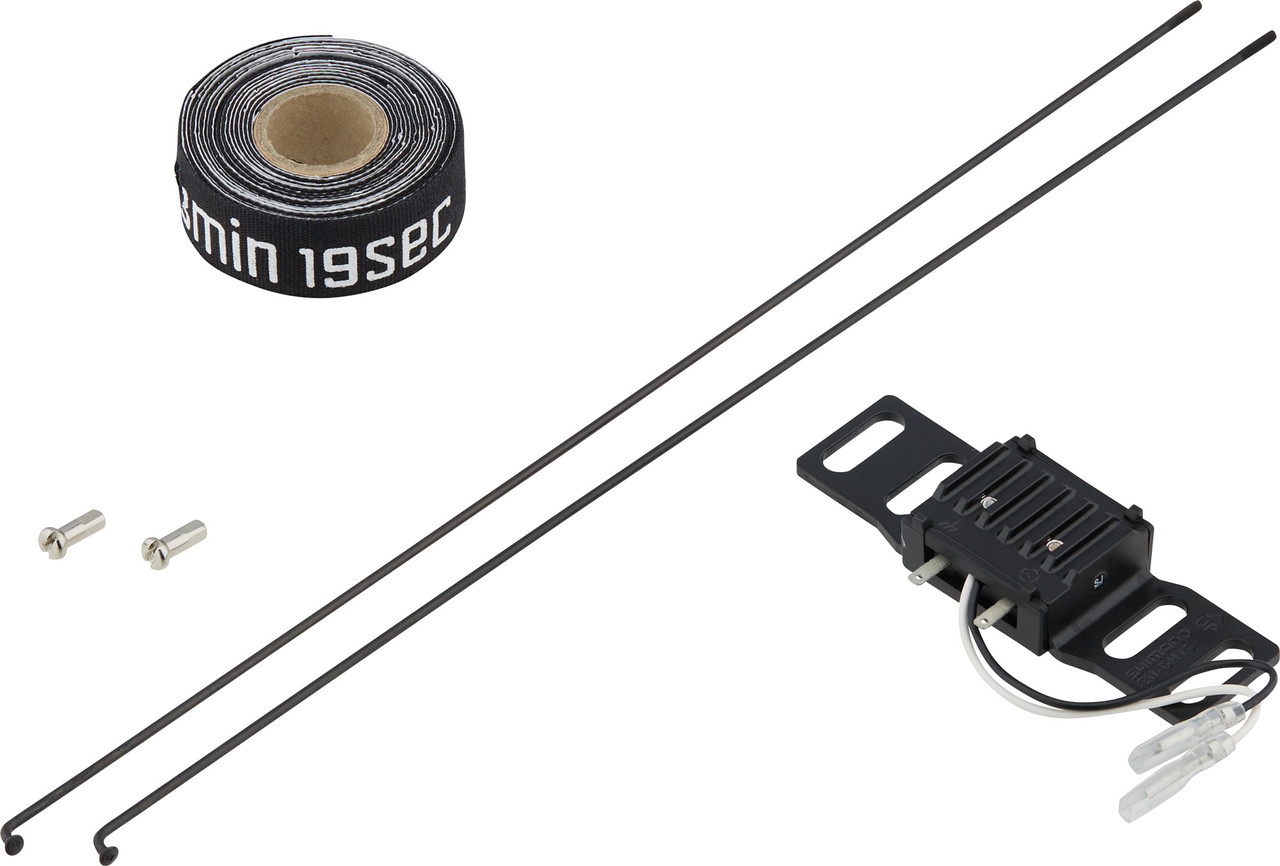

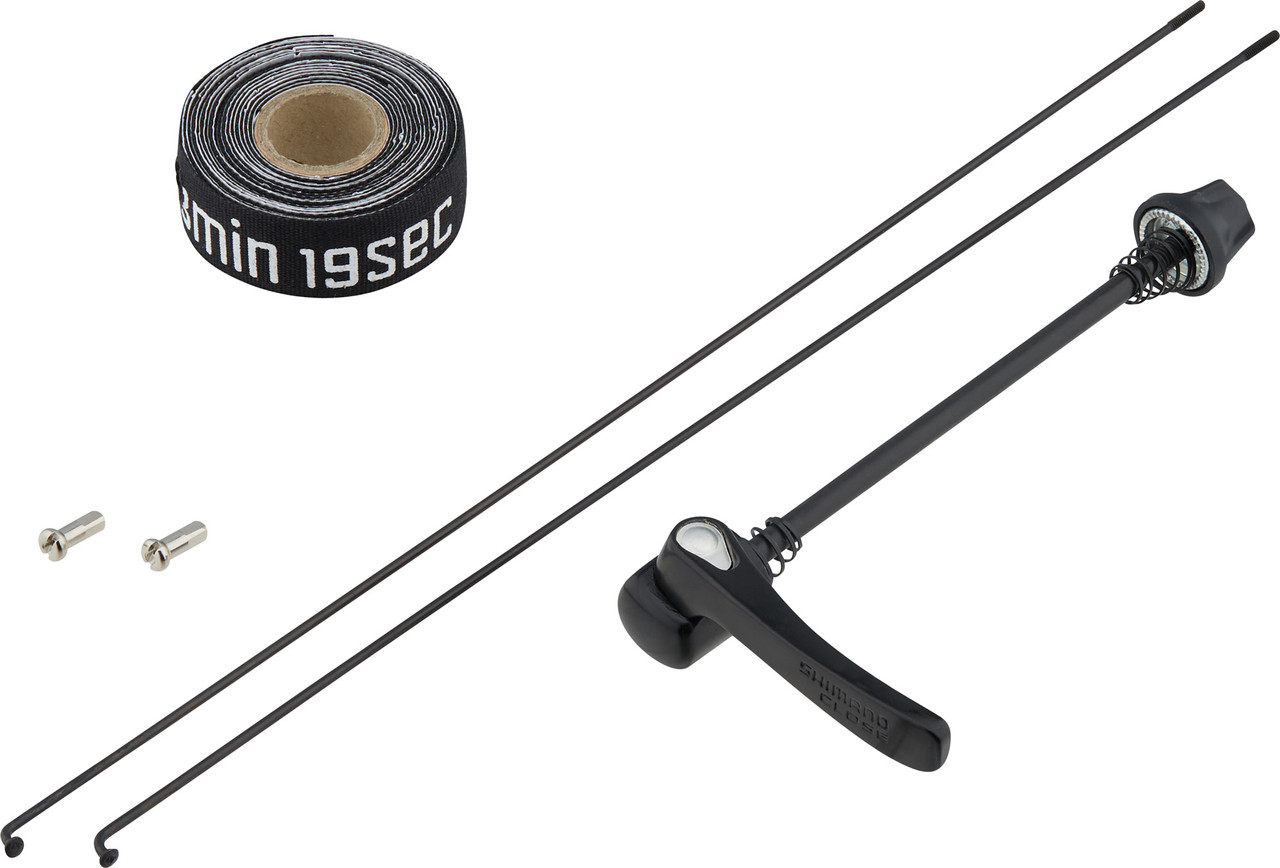

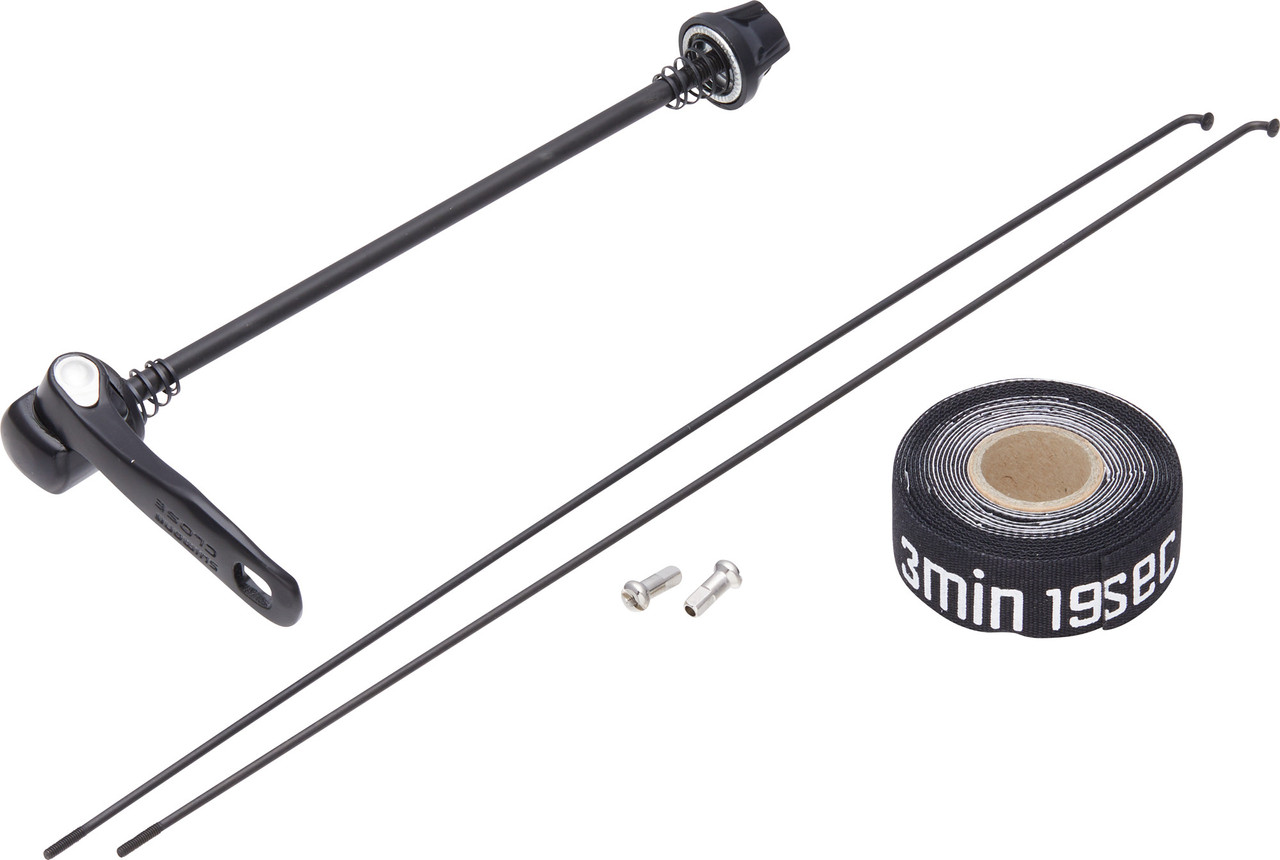

Contents:

• 1 x bc basic Urban Deore Center Lock Disc DT Swiss 533D wheel (front wheel or front wheel with dynamo hub or rear wheel, laced and trued)
• 1 x quick releases (only for front 9x100 and rear 10x135)
• 1 x roll of rim tape
• 2 x spare spokes with nipples
• 1 x connector (front dynamo hub only)
• 1 x overvoltage protector (front dynamo hub only)
