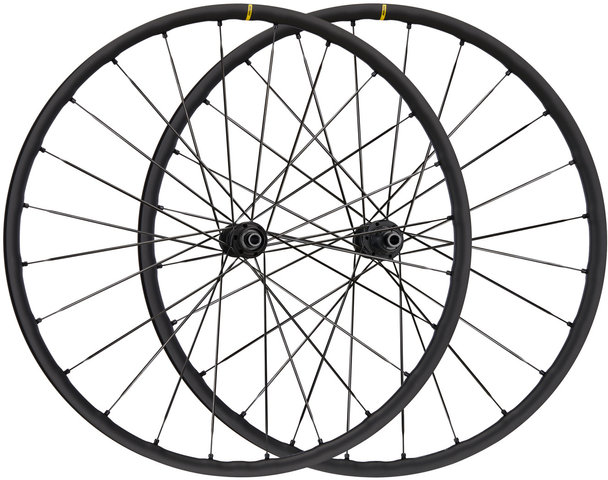

The Mavic Allroad SL Wheelset - Lightweight partner for demanding missions

The Mavic Allroad SL Center Lock Disc is a 28" aluminium wheelset for gravel riders, bikepackers and commuters. During its development, a lot of emphasis was placed on saving weight; it also scores with reliability and user-friendliness. The wheelset is based on tubeless compatible, 22 mm wide rims as well as thru-axle hubs with self-adjusting bearings and optimised spoke holes. 24 double butted straight pull spokes are used at the front and rear. Thanks to a special rim bed technology, tubeless rim tape is not necessary.

Specifications:

Application:

Gravel, City & Touring, Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

UST Road Tubeless

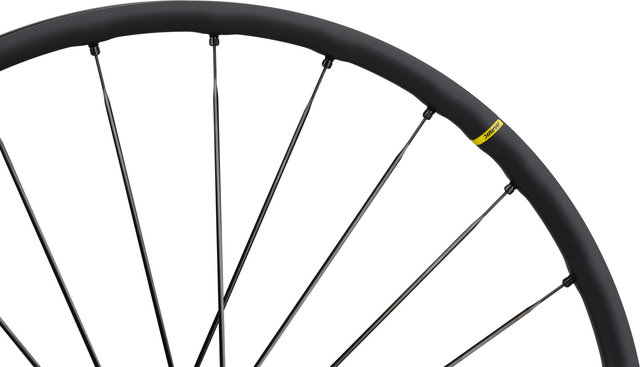

Technical Information - Rim:

Rim Flange:

hookless

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

24.9 mm

Depth:

20 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (Maxtal)

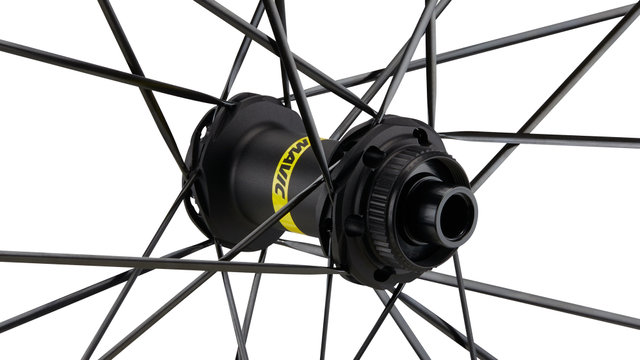

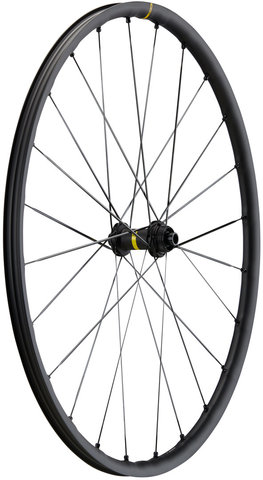

Technical Information - Front Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

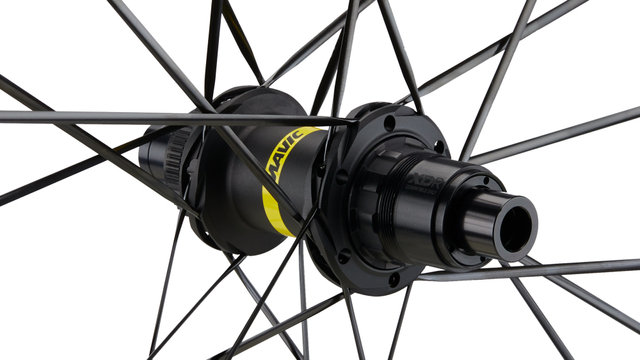

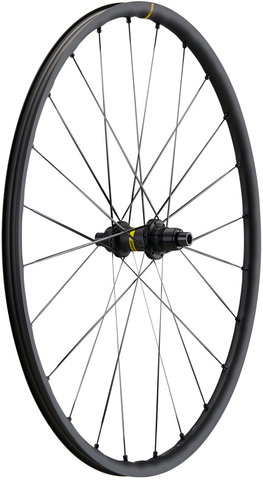

Technical Information - Rear Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight pull / double-butted

Spoke Size:

298 mm

Spoke Material:

steel

Nipple Type:

Fore, integrated

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

see specifications on wheel and tyre (if different take the lower value)

Recommended Tyre Width:

28 - 64 mm (1.1 - 2.5" )

Tyre Type:

Due to its hookless rims, the Allroad Road is only approved for use with UST tubeless tyres and tubular wired tyres. Follow the tyre manufacturer's instructions for use.

* recommended for increased durability

Features:

• smooth, fast ride on rough roads, gravel and dirt
• super light and durable
• laterally stiff and vertically compliant for dynamic ride quality
• revised rim bed shape for easier tyre fitting and quicker tyre changing
• special milling process for weight reduction
• rim profile optimised for disc brakes
• rim joint welded (SUP)
• Infinity hub design for optimal lacing
• aluminium axles
• front can optionally be converted to quick release with separately available adapters, conversion to 15 x 100 mm thru-axle possible by replacing the complete axle
• rear can optionally be converted to quick release by replacing the axle with V2373401 plus separately available adapters
• rear can optionally be converted to 12 x 135 mm thru-axle by replacing the axle with V2373401 plus a separate adapter
• extra-light Shimano freehub body optionally available
• no rim tape required thanks to Fore technology
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

ISM 4D
The ISM 4D (Inter Spoke Milling 4 Dimensions) milling process noticeably reduces weight and inertia without sacrificing durability. Mavic's exclusive patent also provides better aerodynamics with its new rim profile. ISM 4D rims are up to 50 g lighter and therefore offer more climbing performance. Their minimal inertia leads to maximum acceleration. Their extra aerodynamic rim profile results in significantly lower air resistance.

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

P1338155

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

P1473160

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

Contents:

• 1 x Mavic Allroad SL Disc wheelset (front & rear)

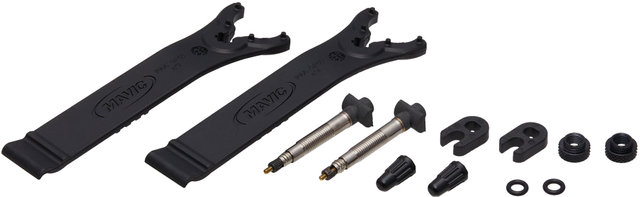

• 2 x UST valve with accessories
