Specifications:

Type:

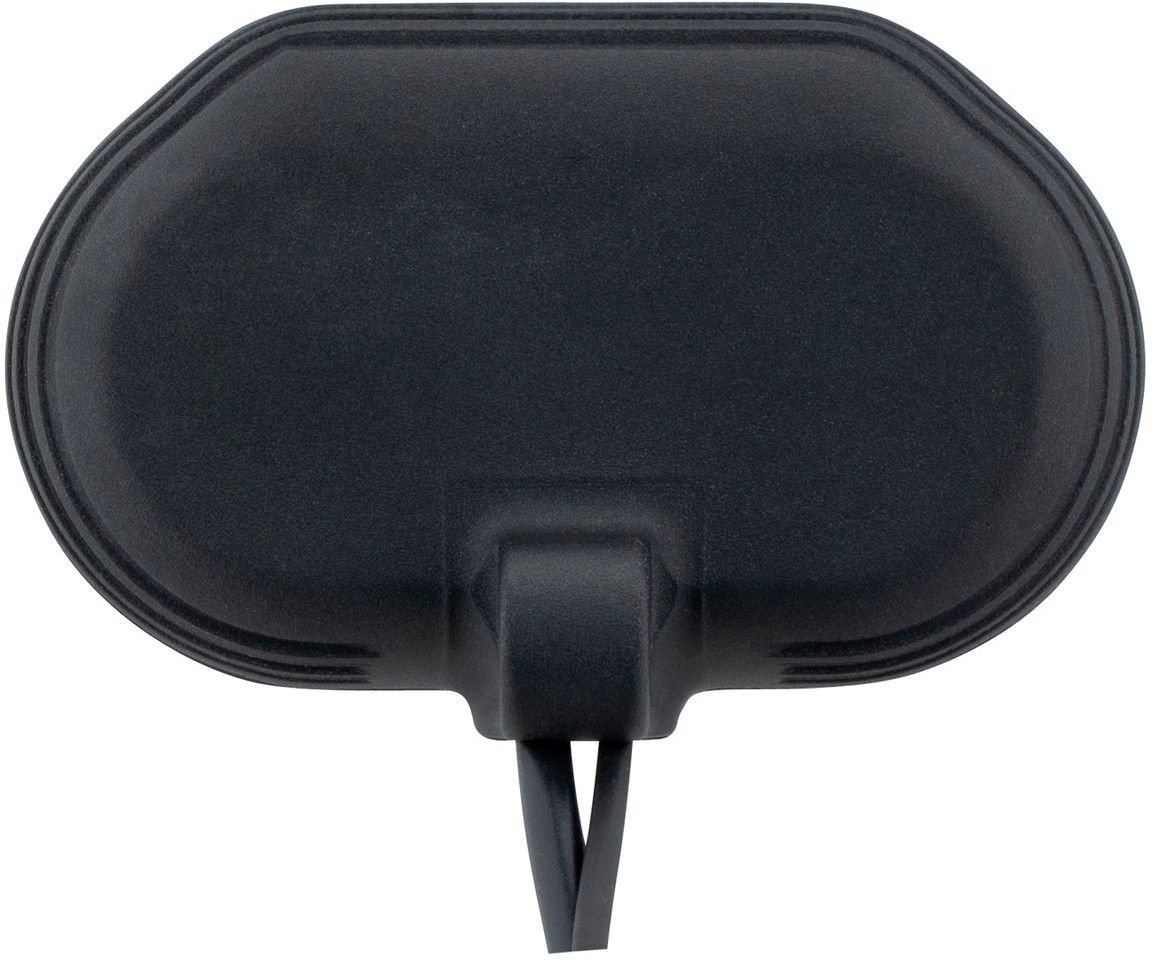

front light

Mount:

stems up to 31.8 mm diameter

Light Source:

10 LEDs

Brightness:

450 lumen, 150 lux (low beam) / 1150 lumen, 260 lux (high beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

Low beam, high beam

Voltage:

5-13.5 V

Protection Rating:

dustproof, protection against temporary submersion (IP 67)

Dimensions (HxWxD):

50 mm x 78 mm x 38.1 mm

Cable Length:

1300 mm

Material:

aluminium

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1456

Compatibility:

• BionX
• Bosch Gen4 (CX) 12 V, 18 W Smart System
• Bosch Gen4 (CX), 12 V, 18 W (connector cable included)
• Bosch Gen2 (Performance Line HS, Performance Line CX, Active Line) (connector cable included)
• Brose (C97272)
• Brose (Drive T, SF, S, C)
• Continental 48
• Daum Impulse
• Neodrives (UR-V5, UR-V8 Integrale, Supercore, Z20 RS)
• Panasonic (GX 0)
• Sachs (RS)
• Shimano (Steps E7000, E8000)
• Specialized (Turbo Levo, Turbo Vado, CREO SL)
• Yamaha (X87 45 km/h W DC, DC 6V, PW-X, PW-X2)

Features:

• front light with high beam function for e-bikes up to 25 km/h
• shatterproof lens

Technology:

Supernova High Beam:

The very high beam angle makes the high beam shine much further than other front lights. In addition, the illumination of corners is significantly better. This makes road signs easier to see and the light cone is not as susceptible to the sagging of a suspension fork. The even, far-reaching, focused field of light greatly improves safety and visibility. There is also a powerful low beam light, so you can ride through the city without glare and in compliance with the law.

Manufacturer Number:

U-M99MIPC-K-MBLK

Contents:

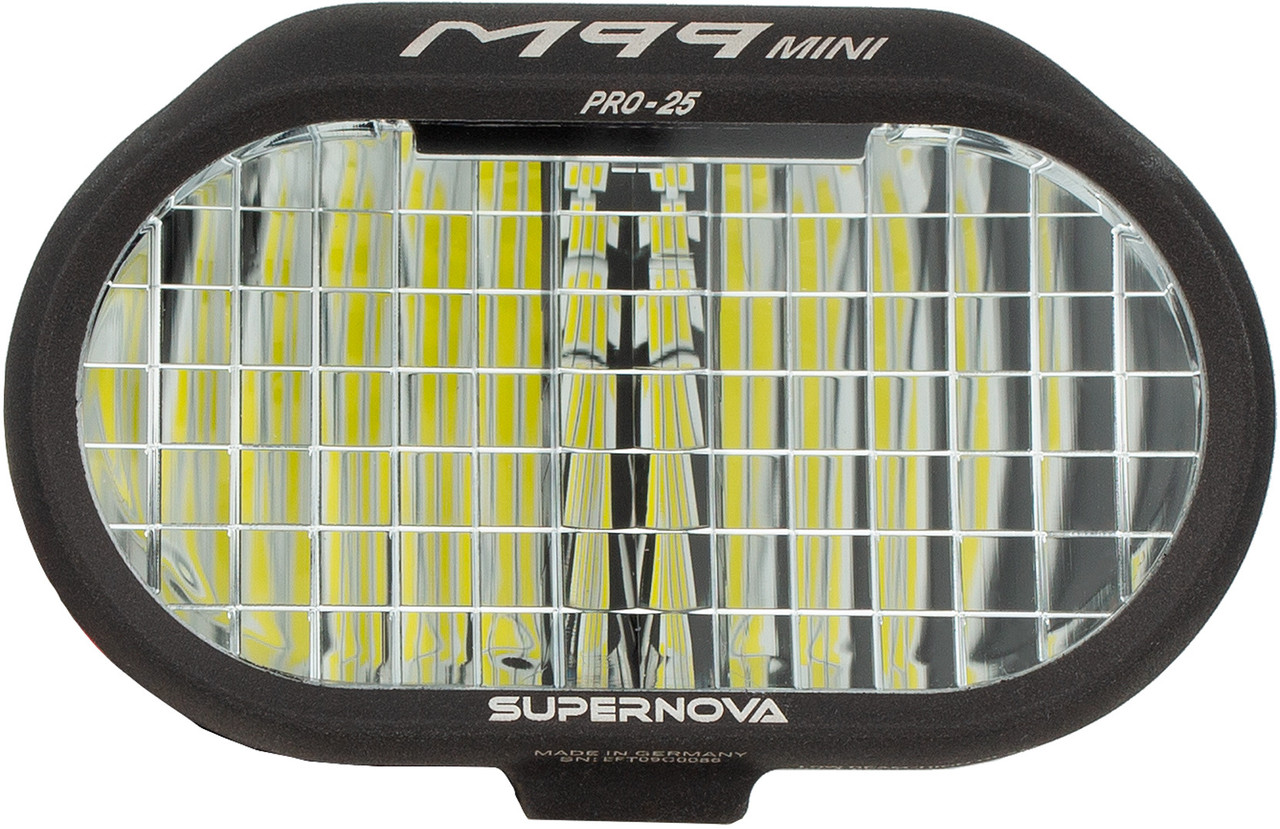

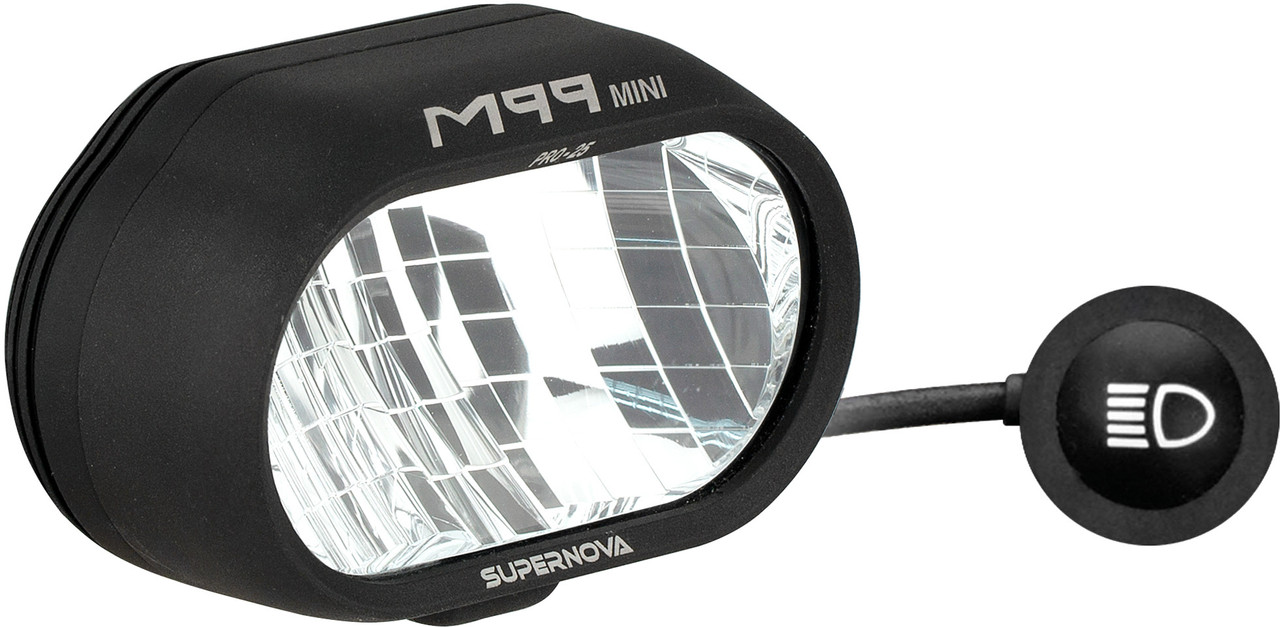

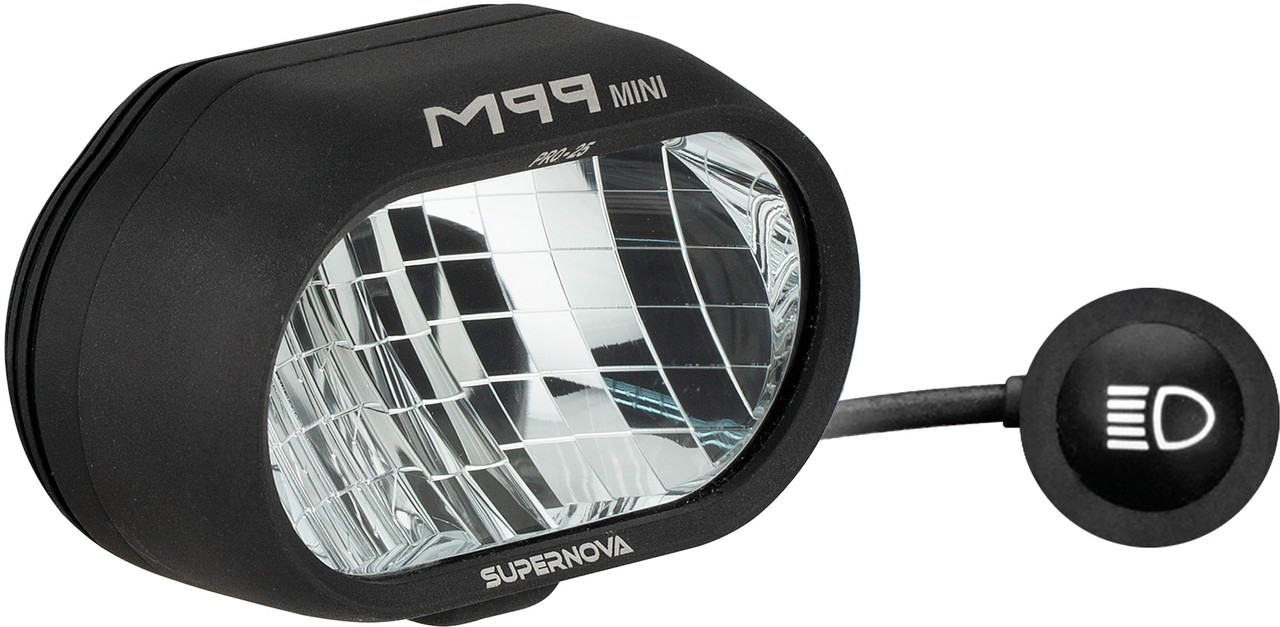

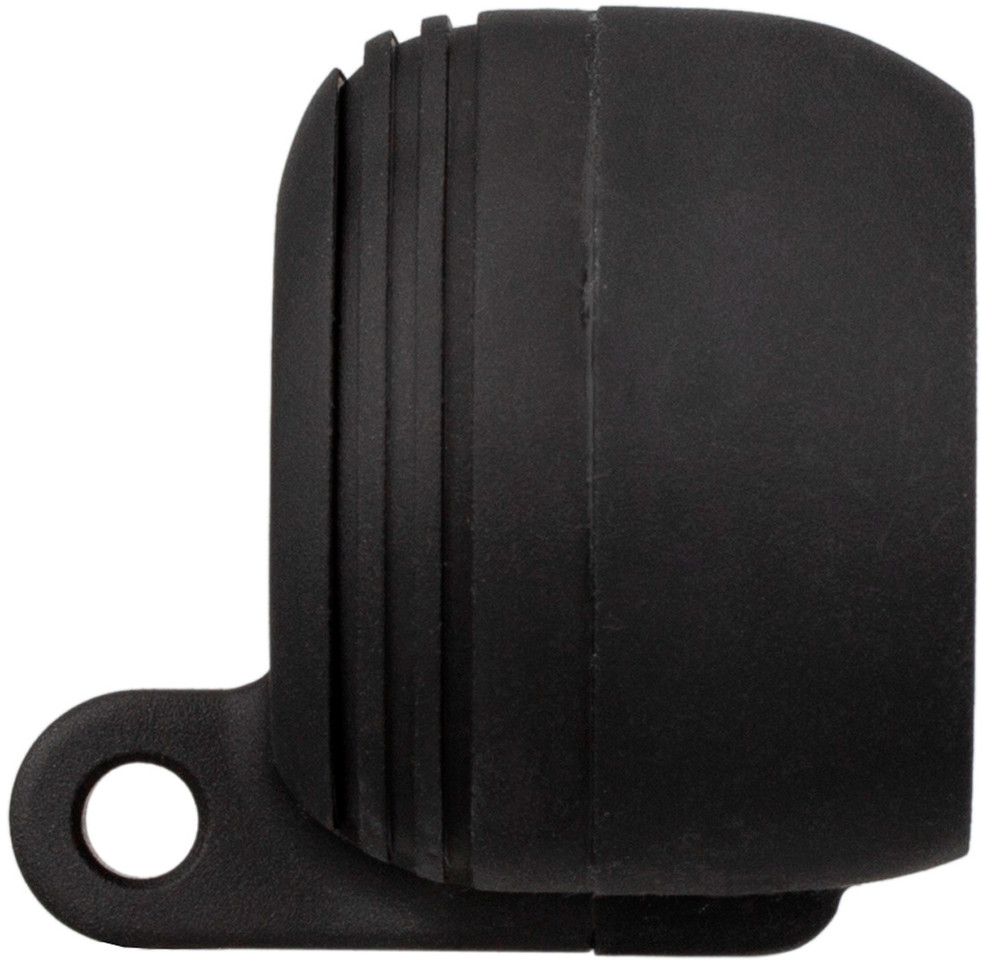

• 1 x Supernova M99 Mini Pro 25 front light

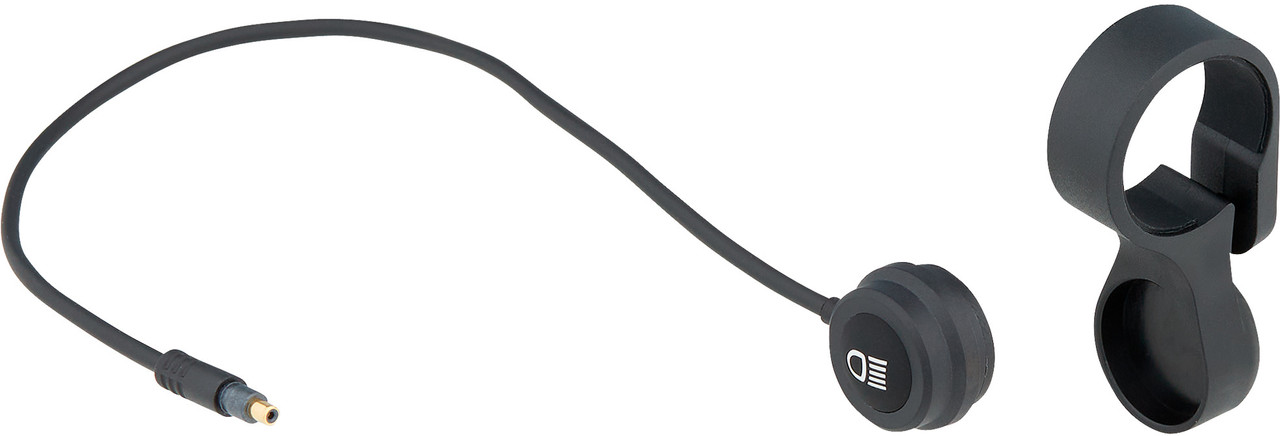

• 1 x Supernova high beam switch

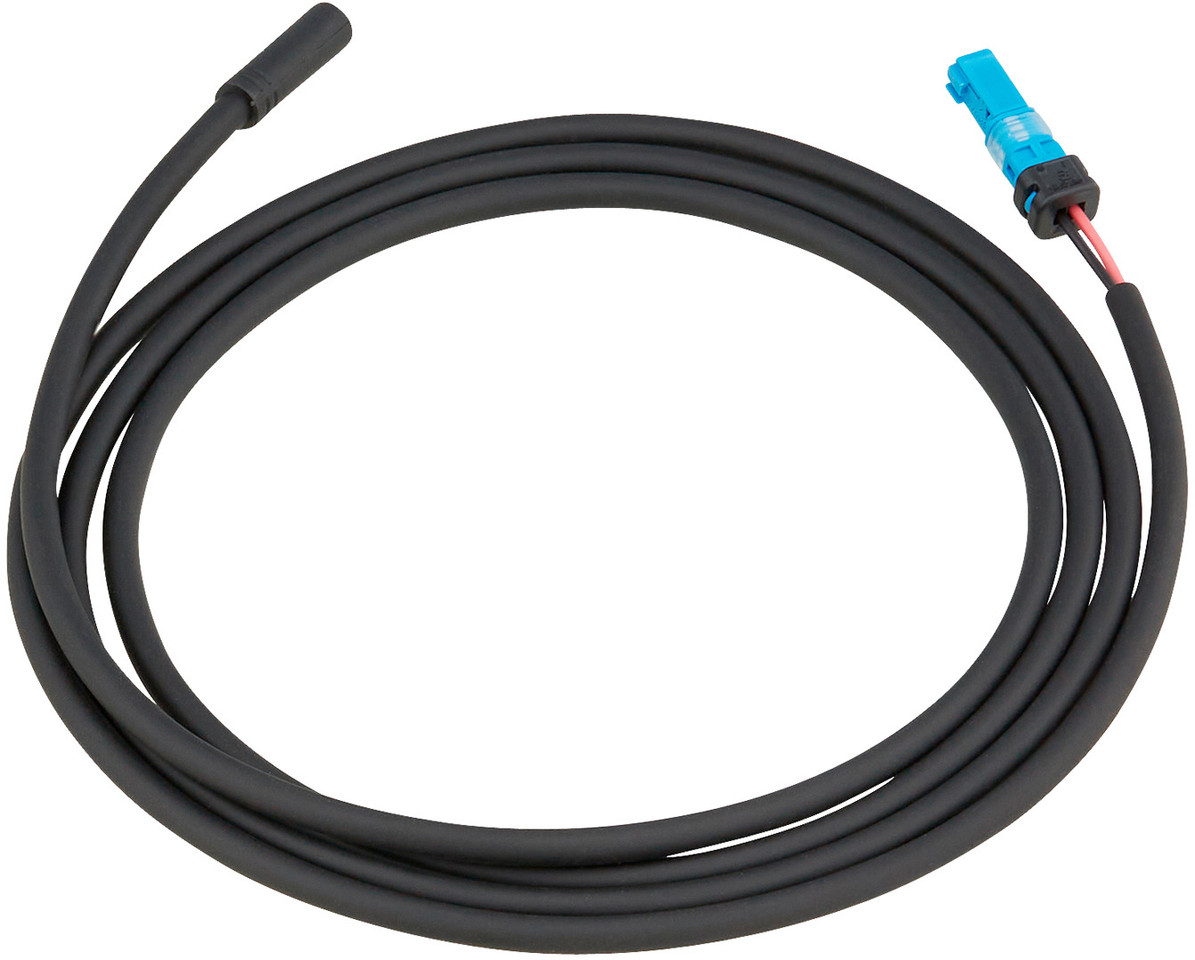

• 1 x Supernova Power Connector cable for Bosch
• 1 x Supernova universal mount for high beam switch
