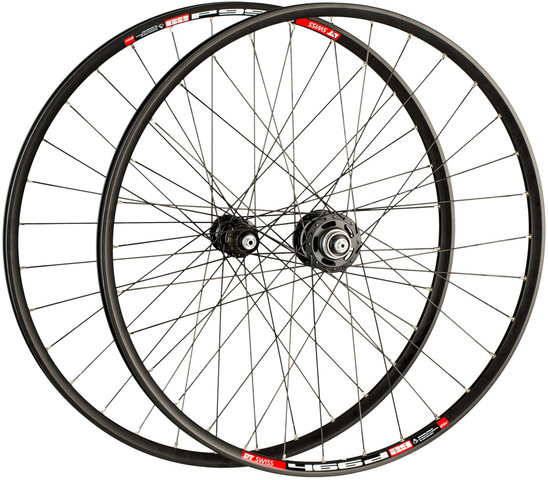

bc basic Urban Shutter Precision/XT Center Lock Disc 28" Wheelset

bc basic Urban 28" wheelset with Mavic 466d rim, Shutter Precision PL-8 hub dynamo, Shimano XT M8000 rear hub and DT Swiss Competition spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

none

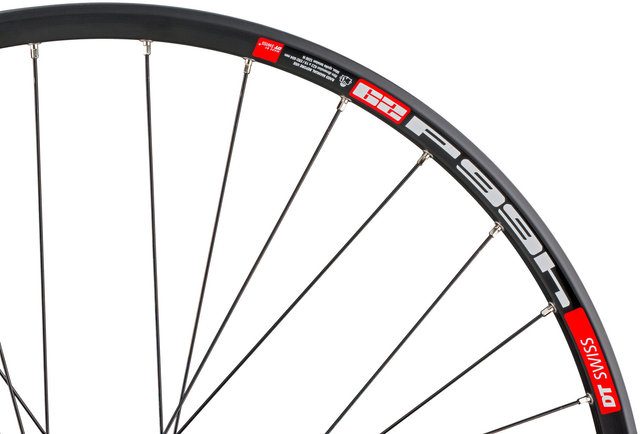

Technical Information - Rim:

Type:

DT Swiss 466d

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

24.5 mm

Depth:

19 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

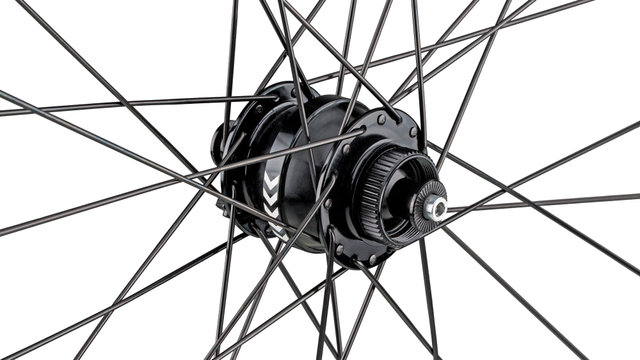

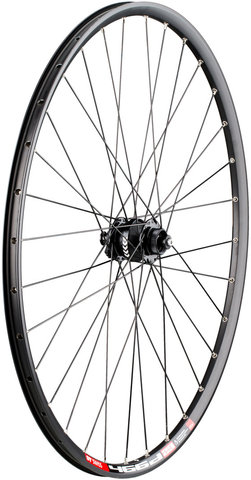

Technical Information - Front Dynamo Hub:

Type:

Shutter Precision PL-8

Over Locknut Dimension:

9 x 100 mm quick release

Output:

6V/3W (according to StVZO)

Efficiency:

72% at 15 km/h in a 28" wheel

Body Material:

aluminium

Wire Connector:

plug, 2-poles

Street Use in Germany:

yes

Check Number:

K~~845

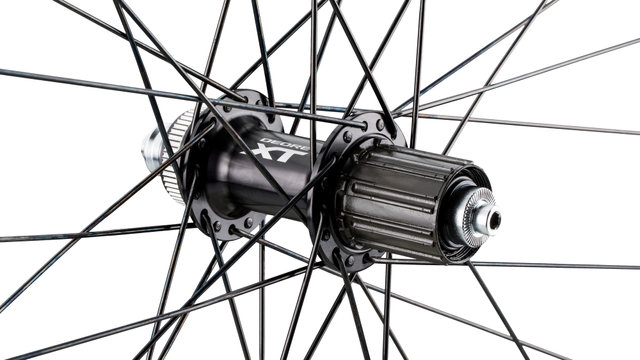

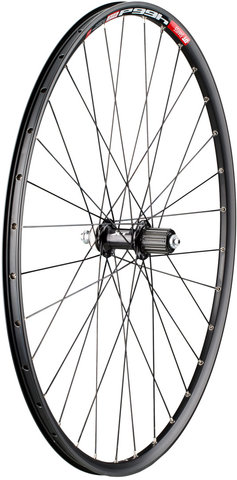

Technical Information - Rear Hub:

Type:

Shimano Deore XT FH-M8000

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Quick Engagement (36 points/360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Competition / double butted (2.0-1.8-2.0)

Spoke Size:

292 mm (front hub dynamo), 294 mm/292 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

110 kg system weight (rider + bike + gear)

Features:

• anodised aluminium rim
• double sealed
• double butted technology

Colour Index:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

28" set (front 9x100 dynamo + rear 10x135) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

60323-2-10759

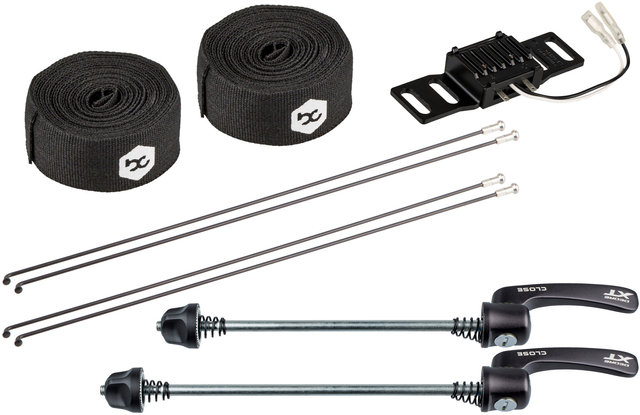

Contents:

• 1 x bc Urban Shutter Precision/XT Disc wheelset (front dynamo hub and rear, laced and trued)
• 2 x Shimano quick releases
• 2 x rolls bc rim tape
• 4 x spare spokes with nipples
• 1 x dynamo hub plug
• 1 x overvoltage protector
