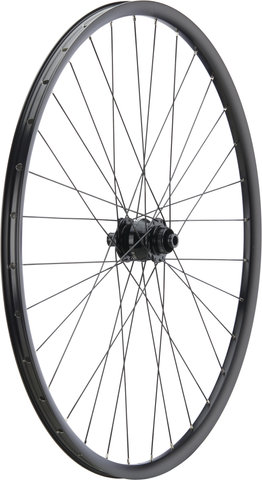

bc basic Urban XT SP Heavy Duty Disc Center Lock P-22 28" Wheelset

The 28" urban wheelset from bc basic with P-22 disc rims, Shutter Precision dynamo and Shimano XT hub

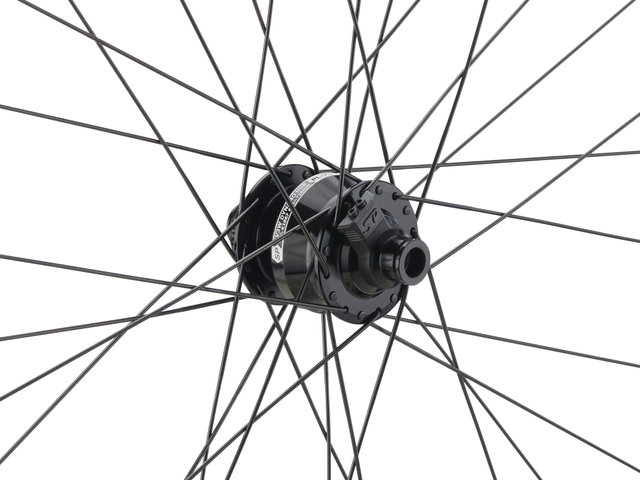

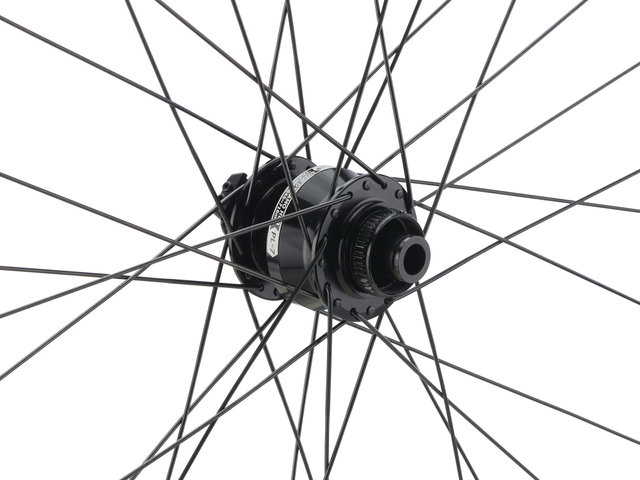

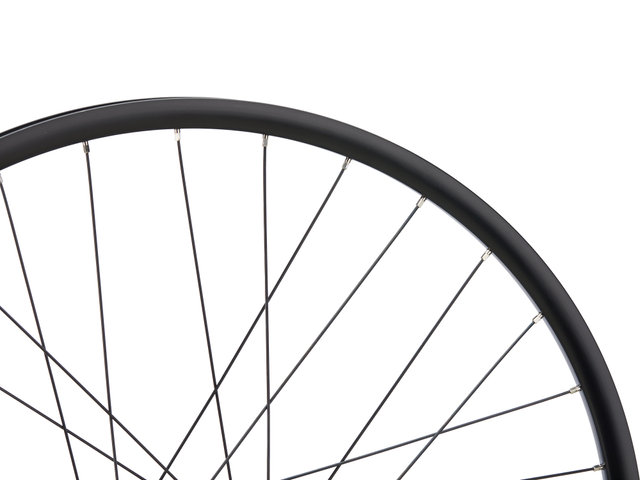

The bc basic Heavy Duty 28" wheels for city and touring use come with a Shutter Precision hub dynamo for quick-release or thru-axle mounting, so that you can fit a lighting system that conforms to road traffic regulations. They are based on the P-22 aluminium rim, a new development by NEWMEN for bc. The P-22 is 22 mm wide and lives up to its name - P stands for " Performance" - with its durability and light weight. Tyre mounting without an inner tube is also possible. The rear wheel has a Shimano XT Disc Centre Lock hub that ensures reliable function. Depending on the version, it is equipped with a conventional MTB 11-speed freehub or a Micro Spline 12-speed freehub. The wheelset is laced with round DT Factory spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City, City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Type:

bc / NEWMEN P-22

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

27 mm

Depth:

20 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (6061)

Technical Information - Front Dynamo Hub:

Type:

Shutter Precision PL-8 or PL-7

Over Locknut Dimension:

9 x 100 mm quick release or 12 x 100 mm thru-axle

Output:

6V/3W (according to StVZO)

Efficiency:

min. 30%

Body Material:

aluminium

Wire Connector:

plug, 2-poles

Street Use in Germany:

yes

Check Number:

K~~845 (PL-8), K~~1867 (PL-7)

Technical Information - Rear Hub:

Type:

Shimano Deore XT FH-M8000 or FH-M8010 or FH-M8110

Over Locknut Dimension:

10 x 135 mm quick release or 12 x 142 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Pawls (FH-M8000/M8010), Direct Engagement (FH-M8110)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Factory / round (2.0 mm)

Spoke Size:

290 mm (front), 290 mm/292 mm (rear Shimano l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

130 kg system weight (bike + rider + equipment)

Features:

• 28" wheelset for demanding use in everyday life and on tour
• rims developed by NEWMEN with durable, lightweight design
• with hub dynamo from Shutter Precision
• Shimano XT Disc Centre Lock rear hub
• round DT Swiss spokes

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

28" set (front 9x100 dynamo + rear 10x135) Shimano:

Over Locknut Dimension (Front):

9 x 100 mm quick release (PL-8)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-M8000)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

91806-2-10759

28" set (front 12x100 dynamo + rear 12x142) Shimano:

Over Locknut Dimension (Front):

12 x 100 mm thru-axle (PL-7)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-M8010)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

91806-2-11218

28" set (front 12x100 dynamo + rear 12x142) Shimano Micro Spline:

Over Locknut Dimension (Front):

12 x 100 mm thru-axle (PL-7)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-M8110)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

91806-2-14073

28" set (front 12x100 dynamo + rear 10x135) Shimano:

Over Locknut Dimension (Front):

12 x 100 mm thru-axle (PL-7)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-M8000)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

91806-2-14117

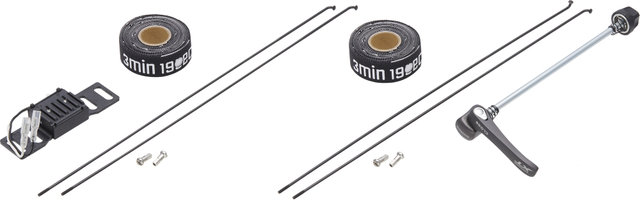

Contents:

• 1 x bc basic Urban XT SP Heavy Duty Disc Center Lock P-22 28" wheelset (front wheel with dynamo hub and rear wheel, laced and trued)
• 2 x rolls bc rim tape
• 4 x spare spokes with nipples
• 1 x dynamo hub plug
• 1 x overvoltage protector
