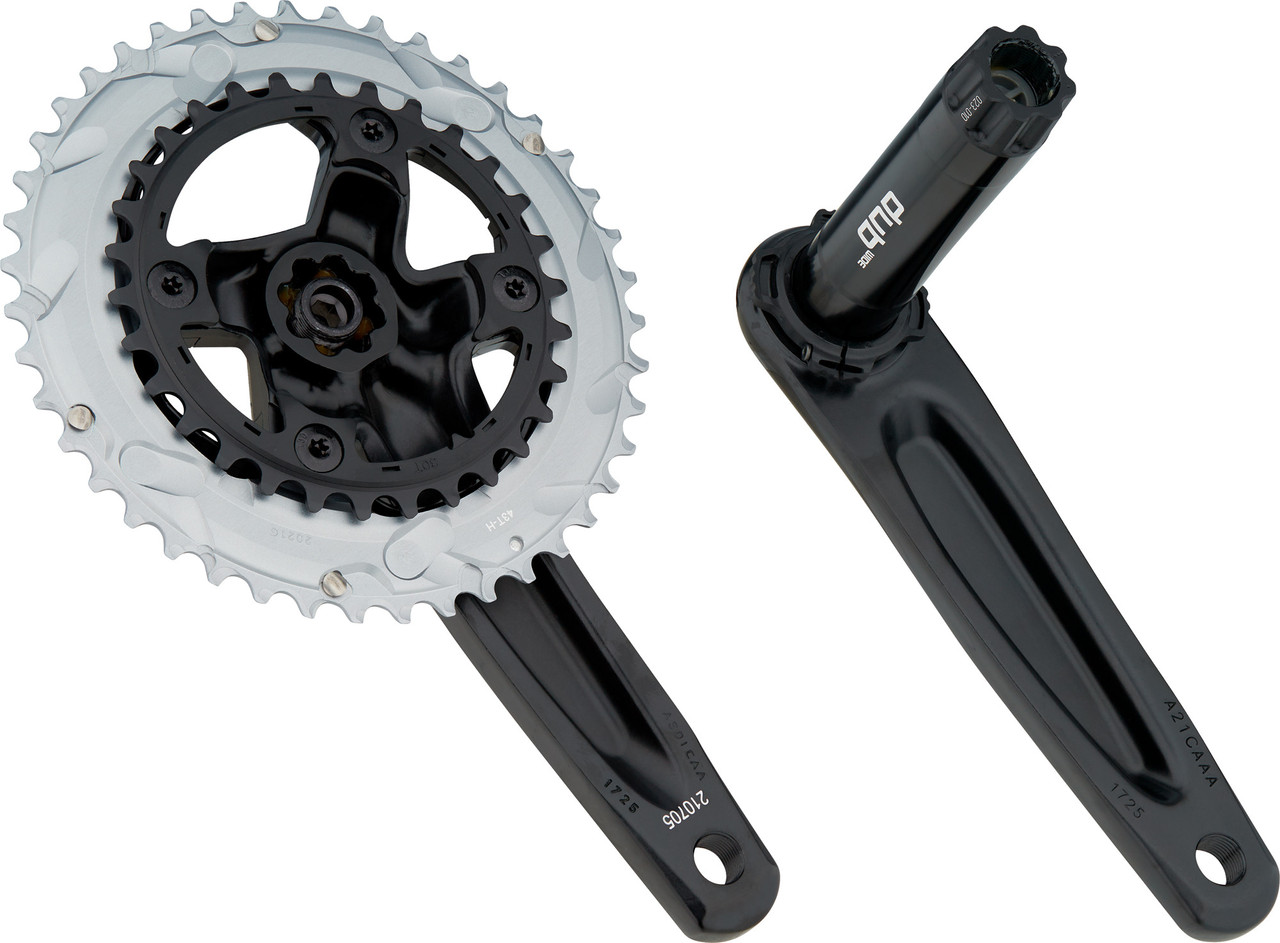

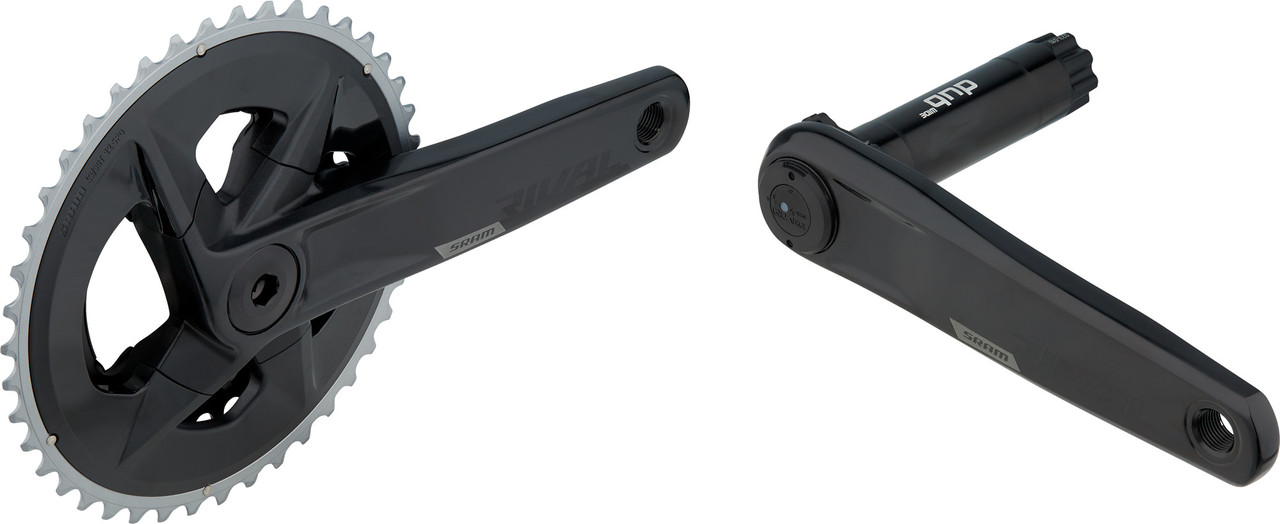

SRAM Rival Wide DUB 2x12-speed Power Meter Crankset

The Rival Wide DUB crankset by SRAM for 2x12-speed drivetrains allows left-sided power measurement thanks to the power meter inconspicuously integrated into the axle. It creates an outwardly shifted chainline of 47.5 mm for more tyre clearance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Gravel, Road

Type:

crankset with power meter (left)

Compatibility:

2x12-speed

Chainring Mount:

94 mm pitch circle, 4-arm asymmetrical

Technical Information:

Series:

Rival

Crank Arm Material:

Aluminium

Chainring Material:

Aluminium

Gradation:

30-43

Crank Arm Length:

165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm

Chainline:

47.5 mm

Axle Diameter:

28.99 mm

Recommended Bottom Bracket:

all DUB Road Wide

Tolerance:

+/- 3%

Point of Measurement:

crank axle

Power Source:

AAA micro battery

Battery Life:

400+ h

Data Collected:

power (left side), cadence, torque

Waterproof:

IPX7

Data Transfer:

ANT+, Bluetooth

Compatibility:

• 142 mm standard width
• only compatible with SRAM Wide Front Derailleurs
• Tyres up to 700 x 45c or 27.5 x 2.1"

Features:

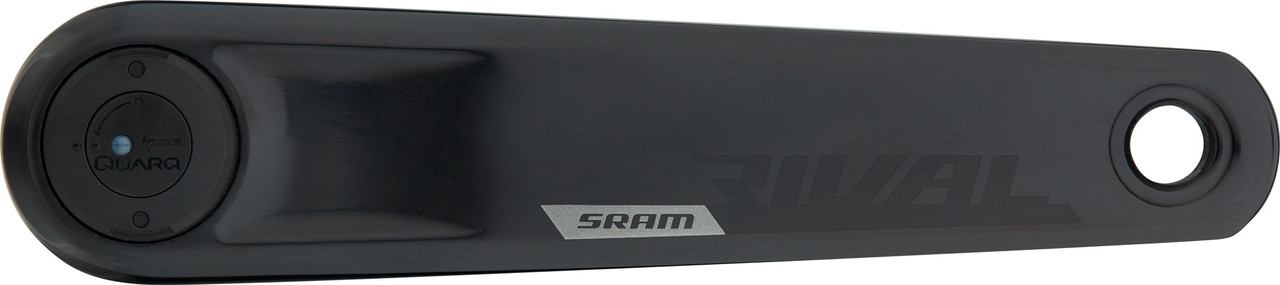

• DUB-PWR Axis unit measures left-sided power to determine total wattage
• elegant integrated design
• proven reliability and accuracy with QUARQ technology
• wide: 5 mm longer axle, chainline shifted outwards especially for bikes with wide gravel tyres
• DUB bottom bracket system for durability and simplicity
• energy display (total power), calibration, battery status display via app
• long battery life covers an entire season

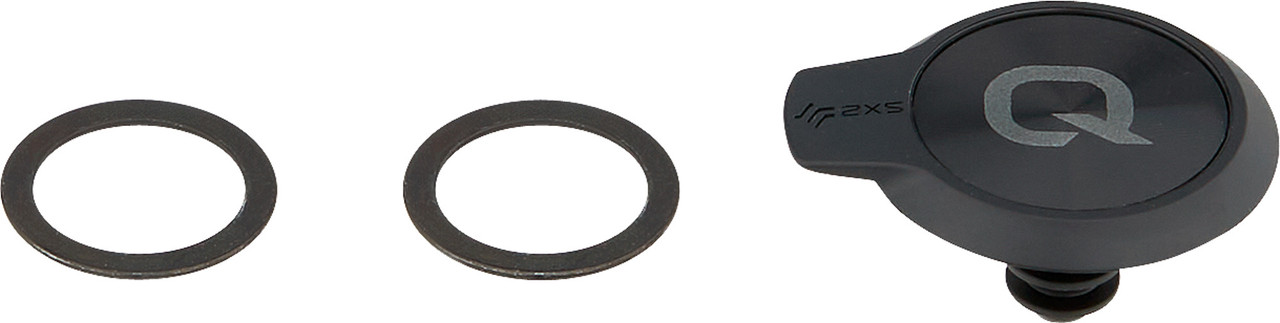

• user-replaceable battery
• IPX7 waterproof up to 1 meter for 30 minutes
• light: only 40 g heavier than standard crankset

Manufacturer Numbers:

165.0 mm 30-43:

00.3018.295.000

170.0 mm 30-43:

00.3018.295.001

172.5 mm 30-43:

00.3018.295.002

175.0 mm 30-43:

00.3018.295.003

Contents:

• 1 x SRAM Rival Wide DUB Crankset with power meter axle
• 2 x chainrings
• 1 x AAA battery
