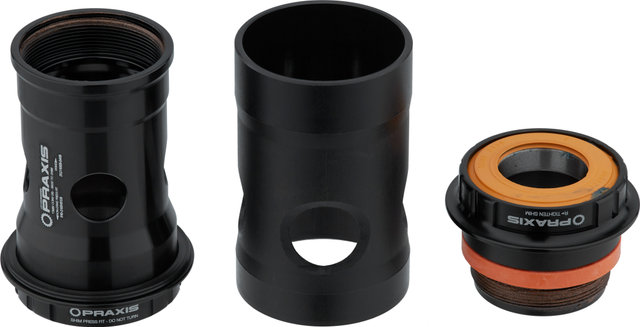

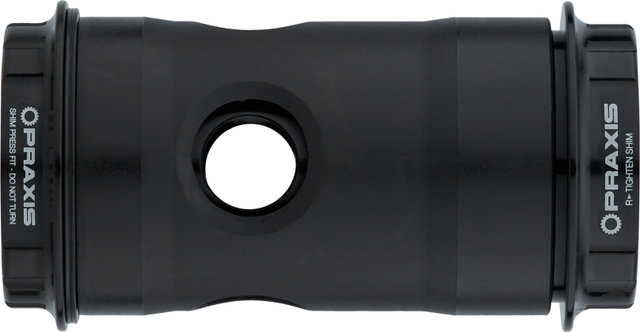

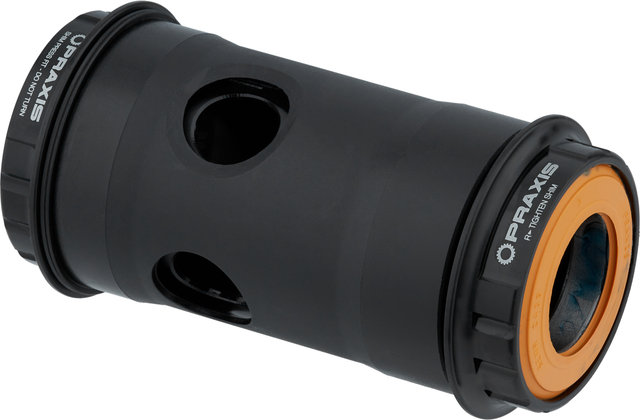

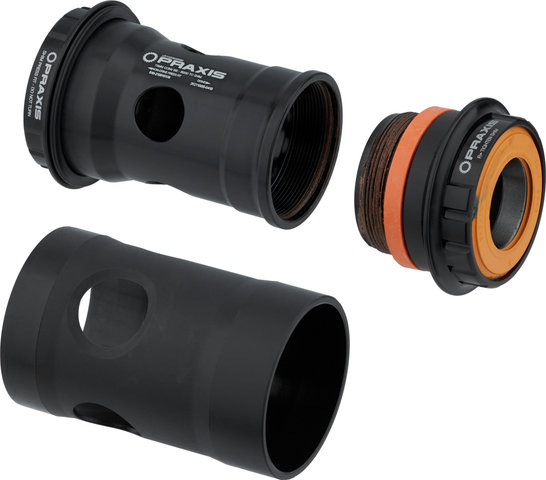

Shimano MTB BB30 / PF30 conversion steel bottom bracket - black/Pressfit

Praxis Works Shimano MTB BB30 / PF30 conversion steel bottom bracket

Item number: 61301

A sophisticated solution: the Shimano Mountain conversion bottom bracket from Praxis Works


Praxis Works offers a solution for installing Shimano cranks (24 mm axle, Hollowtech II) onto BB30, PF30 and Specialized OSBB frames. The patented system is a complete and high-quality bottom bracket which guarantees a secure and perfect fit. It dispenses with wobbly or imprecise spacers and adapters that can cause cracking noises or premature wear on the bearing. This is why many well-known wheel manufacturers rely on these bottom brackets.

Specifications:

Application:
Cross Country
Series:
Conversion BB
Type:
BB30, Pressfit PF30
Shell Diameter:
42 mm, 46 mm
Shell Width:
73 mm
Axle Diameter:
24 mm (Hollowtech II)

Technical Information:

Bearings:
steel (Enduro 2437)
Bottom Bracket Cup Material:
aluminium (7075-T6)

Compatibility:

  • for fitting Shimano Hollowtech II cranks to BB30 and PF30 73 mm MTB frames
  • for ISCG-05 and seat tube chain guides, not for ISCG-03
  • for braze-on, clamp and direct mount front derailleurs, not for E-type/bottom bracket mount
  • not for BBRight, BB386EVO, BB86 or BB92 frames
  • not for 68 mm shells

Features:

  • chainline matched exactly to Shimano
  • cups made of forged and machined heat-treated aluminium
  • patented sleeve design: bearing cup with integrated sleeve on the non-drive side for a smooth fit
  • O-ring on non-drive side compensates for frame discrepancies
  • orange elastomer ring for drive side

Technology:

Conversion BB
Conversion bottom brackets from Praxis Works are the leading bottom bracket solution for all Shimano, Campagnolo Ultra Torque or SRAM GXP cranks. They fit BB30, PF30 or Specialized OSBB frames. Patented Praxis Works technology not only neutralizes all tolerances from frame manufacturers, but also guarantees an increased service life. In Praxis Collet bottom brackets, the non-drive side is pressed in and then the drive side is screwed into it. When screwed together, the bearing expands to a defined end position, which corresponds to the respective press fit, and sits tight without creaking. Additionally, an orange elastomer rubber ring is compressed in the drive direction, which in turn expands towards the frame, thereby jamming the bearing once again. The elastomer material compensates for tolerances while simultaneously muffling any cracking noises.

Manufacturer Number:

73-3001R

Contents:

  • 1 x Praxis Works Conversion BB left bearing cup, incl. bearings bottom bracket sleeve
  • 1 x Praxis Works Conversion BB right bearing cup, incl. bearings
  • 1 x Praxis Works PF30 bottom bracket sleeve
  • 1 x rubber rind for drive side, orange
  • 1 x O-ring for non-drive side
  • 1 x compression ring
  • 2 x bearing cover
