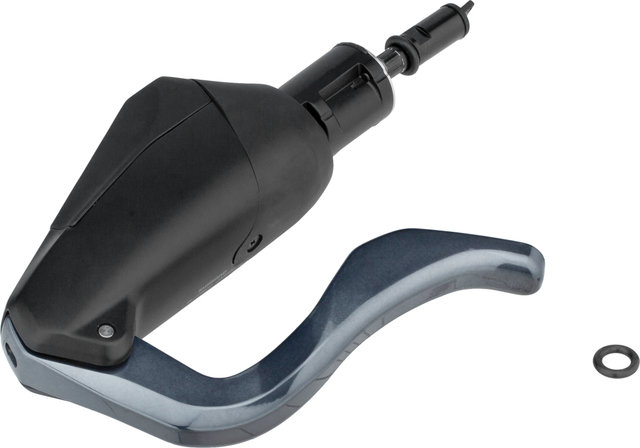

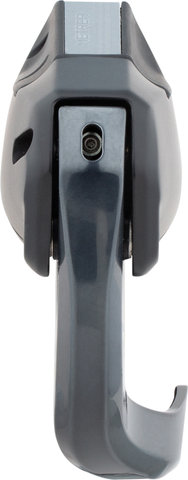

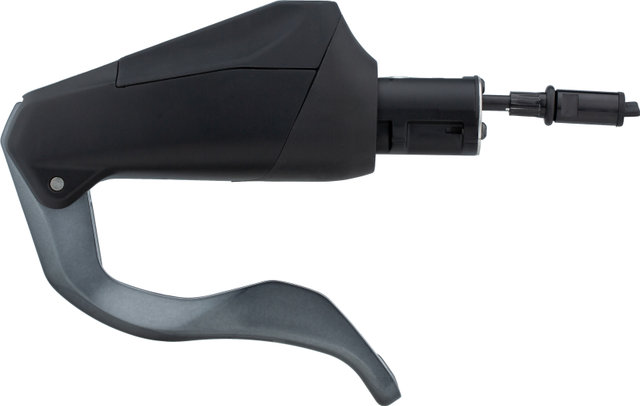

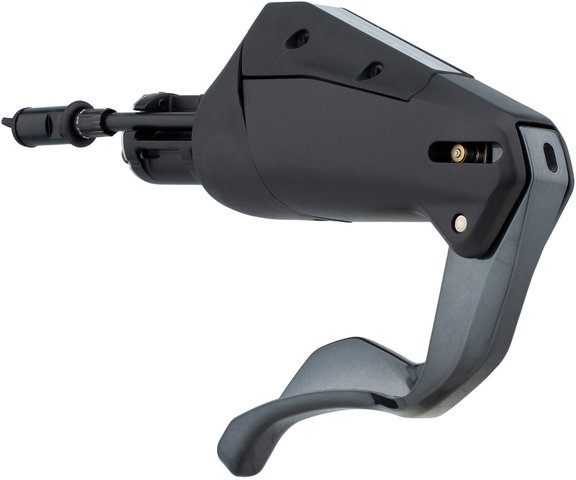

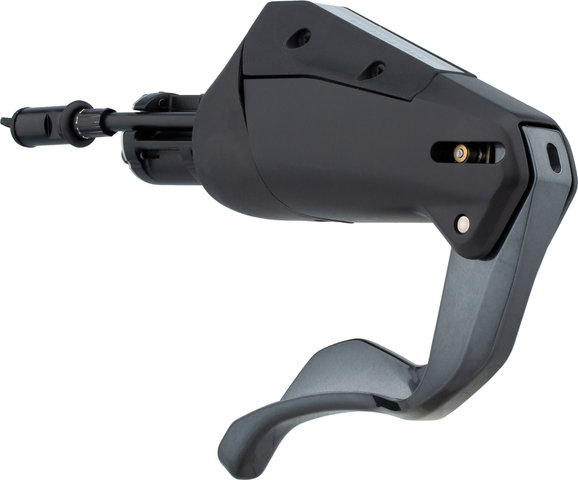

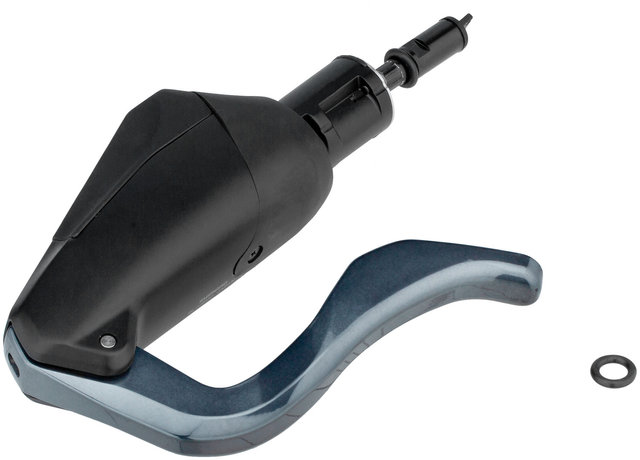

Shimano Metrea BL-U5010 Brake Lever

The Metrea brake lever BL-U5010 by Shimano - especially for H-type handlebars

The Shimano Metrea BL-U5010 brake lever was developed for H-type handlebars with ends that are bent backwards, as they are increasingly common on city bikes. This is a brake lever for left-side mounting, to be used in combination with the shift/brake lever ST-U5060 on the right side. Its soft braking power can be precisely dosed - important for city traffic. With its tidy and elegant exterior, the BL-U5010 also looks good in your cockpit.

Specifications:

Series:

Metrea U5000

Application:

City

Type:

hydraulic

Actuation:

mineral oil

Hose:

SM-BH59-JK-SS (not included)

Technical Information:

Adjustment Options:

reach adjust (with tools)

Mount:

clamp (closed)

Design:

left (side-specific)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Aluminium

Hose Connection:

straight

Compatibility:

Handlebar Type:

H-type

Clamp Diameter:

29.8 - 30.2 mm

Right Shift/Brake:

ST-U5060-R

Features:

• tidy and elegant style
• relaxed riding through the streets with minimal effort and distraction
• soft and constant braking performance
• funnel bleeding
• painted
• 10 mm wrench required to tighten steel clamp bolt

Manufacturer Number:

I-BLU5010L

Contents:

• 1 x Shimano Metrea BL-U5010 brake lever, left
